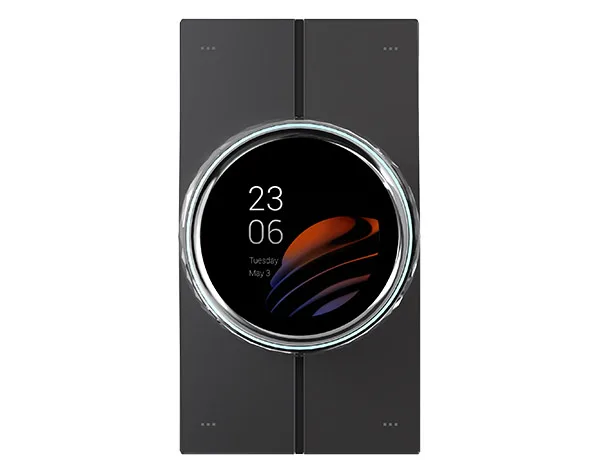

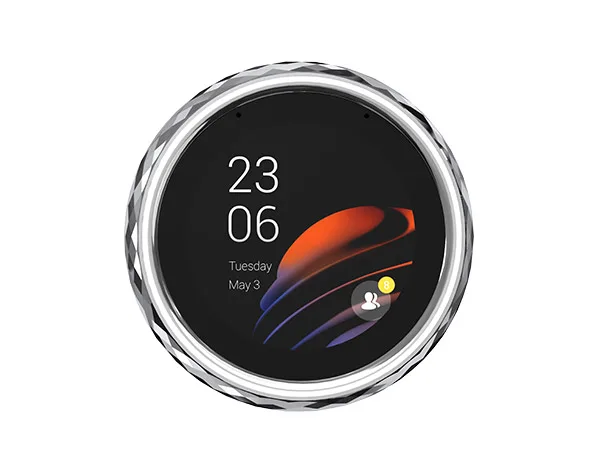

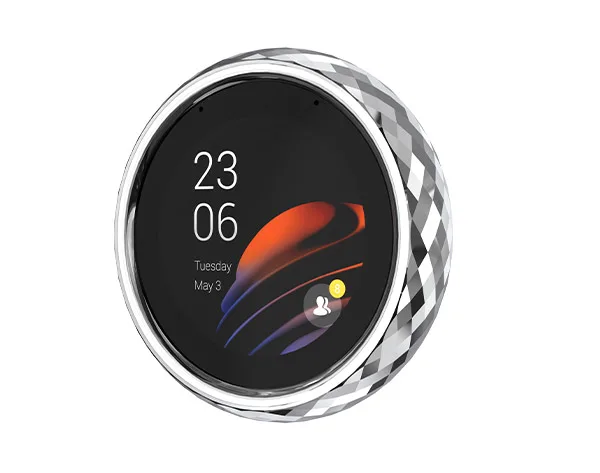

Akubela HyPanel Lux RT61-D1-EU
Smart Home Control Panel, 2.1'' Touchscreen, Wi-Fi 2.4G/5G, Bluetooth 4.2, ZigBee 3.0, 1-Gang Dimmer
Akubela HyPanel Lux is an advanced smart control panel that combines luxury design with powerful performance. Powered by Android 10 and a Qualcomm processor, it integrates smart intercom, ZigBee 3.0, infrared remote control, and home automation into one unit. The 2.1-inch circular touchscreen, surrounded by a 16-million color RGB light ring, a solid metal knob, and four AG glass buttons, offers seamless multi-modal interaction. With built-in sensors, dual microphones and speakers, and support for horizontal or vertical installation, it delivers an elegant, intelligent solution for smart homes.
Key Features:
- 2.1-inch touch screen with 4 AG-glass physical buttons
- Infinite metal knobs with damping and ratchet mode
- Light ring with over 16 million colors
- Built-in sensors and infrared remote control
- Supports both horizontal and vertical installation
- Android 10 system powered by Qualcomm chip
- Smart intercom, ZigBee gateway, and home automation all in one
Product Specifications:
- Model: RT61-D1-EU
- Power Supply: 180 ~ 260VAC, 50Hz
- Output: 1 gang, 300W total; 300W/gang (resistive); 150W/gang (LED/CFL)
- Wire Range: 0.5 ~ 2.5mm² (24 ~ 12AWG)
- Power Meter: Supported
- Operation System: Android 10
- RAM/ROM: 1GB / 8GB
- Screen Size: 2.1” multi-touch screen
- Screen Resolution: 480×480 pixels
- Screen Brightness: 210 cd/㎡
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
- Bluetooth: Bluetooth 4.2
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- Microphone: Dual microphones, -42dBV
- Speaker: Single speaker, 8Ω / 1.5W
- Material: V0 fireproof PC + 4 AG glass buttons + 1 metal knob
- IR Control Coverage: Horizontal 90°, Vertical 90°, Range: 6m
- Environment: For indoor use only
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
- Temperature Sensor: ±1℃, Range: -10℃ ~ 55℃
- Humidity Sensor: ±5%, Range: 10% ~ 90%RH (non-condensing)
- Gravity Sensor: 3-axis
