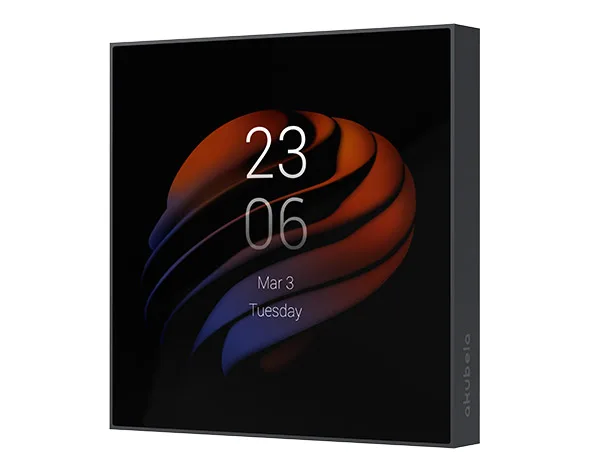

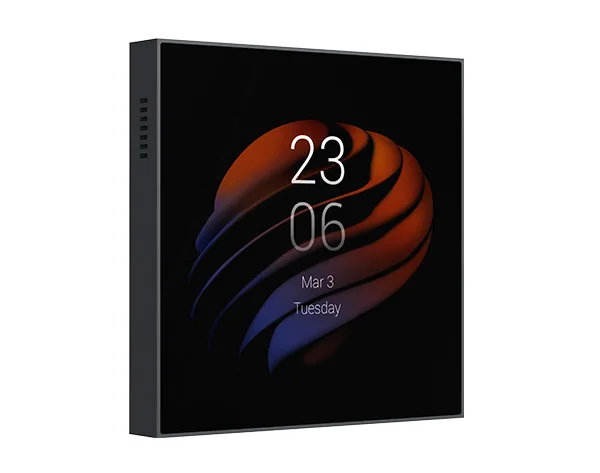

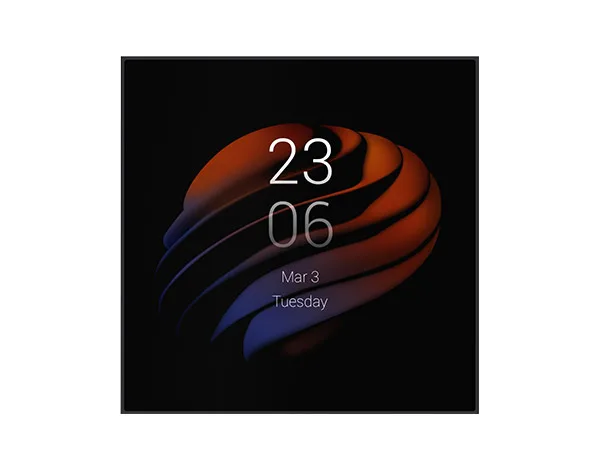

Akubela HyPanel PS51-HEATING-EU
Smart Home Control Panel, 4'' touch screen, Android OS, ZigBee gateway, Bluetooth 4.2
Akubela PS51-HEATING-EU HyPanel is a smart heating thermostat panel designed to simplify climate control in modern homes. Powered by Android 10, it combines smart intercom, ZigBee 3.0 gateway, thermostat, and home automation in one elegant interface. With its high-power relay output and built-in sensors, it enables efficient heating management while ensuring compatibility with a wide smart ecosystem. Perfect for intuitive multi-user interaction across the household.
Key Features:
- Excellent performance with Android 10 system
- 4” multi-touch screen with energy saving mode
- Support heating thermostat control
- Smart intercom, ZigBee gateway, and home automation all in one
- Built-in sensors for enhanced functionality
- Fits EU standard flush-mounted electrical boxes
Product Specifications:
- Manufacturer: Akubela
- Model: PS51-HEATING-EU
- Material: V0 fireproof PC
- Operating System: Android 10
- RAM / ROM: 1GB / 8GB
- Screen Size: 4” multi-touch screen
- Screen Resolution: 480×480 pixels
- Screen Brightness: 210 cd/㎡
- Wi-Fi: IEEE 802.11 b/g/n @2.4GHz / 5GHz
- Bluetooth: Bluetooth 4.2
- Built-in Relay Capacity: 20A
- Maximum Resistive Load: 16A (4000W @ 250VAC)
- Wire Range: 1.5 ~ 2.5mm² (16 ~ 12AWG)
- Power Meter: Supported
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- Bell In: Supported
- NTC Measurement Range: -30°C ~ 80°C / Accuracy: ±0.5°C
- Microphone: Dual microphones, -42dBV
- Speaker: Single speaker, 8Ω / 1.5W
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
- Temperature Sensor: ±1℃, Range: -10℃ ~ 55℃
- Humidity Sensor: ±5%, Range: 10% ~ 90%RH (non-condensing)
