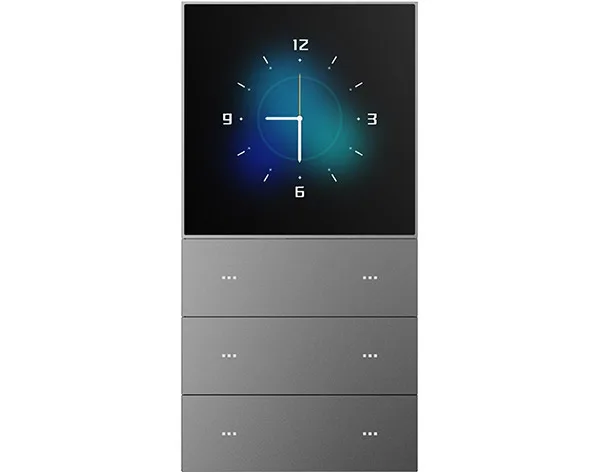

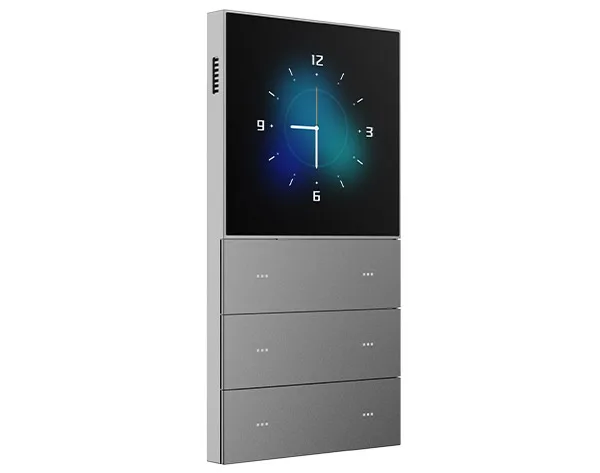

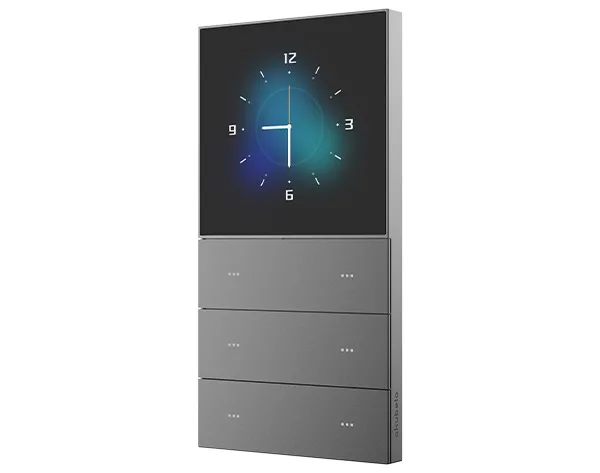

Akubela HyPanel PS52V2-PoE-US
Smart Home Control Panel, 4'' Touchscreen, Android OS, ZigBee 3.0, Wi-Fi 6, Bluetooth 5.4, PoE.
Akubela PS52V2-PoE-US HyPanel Plus is a sleek and powerful smart control panel designed to simplify your home automation. Featuring Android 12, a 4-inch multi-touch screen, and dual touch buttons, it integrates a ZigBee 3.0 gateway, smart intercom, and RS485 support—all in one unit. Equipped with WiFi 6, Bluetooth 5.4, and PoE or DC power options, this metal-housed device offers multi-sensor capabilities and a flush-mounted design for elegant and smart indoor control.
Key Features:
- Excellent performance with Android 12 system
- 4” multi-touch screen with energy saving mode
- 2 touch buttons, suitable for the whole family
- Smart intercom, ZigBee gateway, home automation – all in one
- Multiple built-in sensors for intelligent automation
- Supports RS485 for extended connectivity
Product Specifications:
- Model: PS52V2-PoE-US
- Power Supply: IEEE802.3af PoE & 12 – 24VDC
- Operation System: Android 12
- RAM/ROM: 2GB / 8GB
- Screen Size: 4” multi-touch screen
- Screen Resolution: 480×480 pixels
- Screen Brightness: 210 cd/㎡
- Wi-Fi: WiFi 6, IEEE 802.11a/b/g/n/ac/ax
- Bluetooth: Bluetooth 5.4
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- RS485 Port: Supported
- Microphone: Dual microphones, -26dBFS
- Speaker: Single speaker, 8Ω / 1.5W
- Material: Metal
- Button: 2 touch buttons
- Environment: For indoor use only
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
- Temperature Sensor: ±1℃, Range: -10℃ ~ 55℃
- Humidity Sensor: ±5%, Range: 10% ~ 90%RH (non-condensing)
