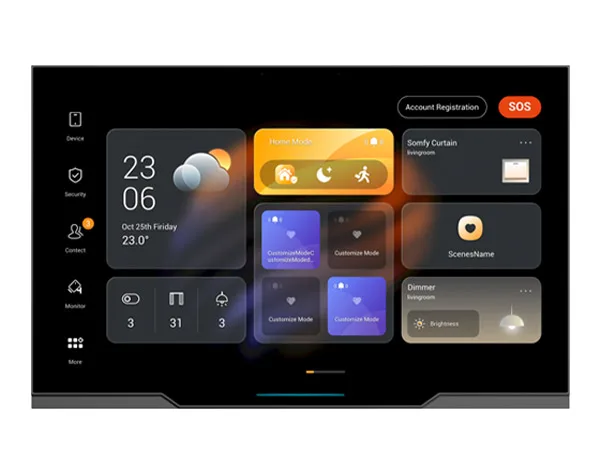

Akubela HyPanel Supreme PHX1-ST
Smart Home Control Center, 12.35'' touchscreen, Android OS, ZigBee gateway, Wi-Fi, Bluetooth 5.0.
Akubela PHX1-ST HyPanel Supreme is a premium 12.35-inch smart home control panel designed for top-tier automation experiences. Featuring a stunning 2.5K UHD display with ultra-slim bezels, it runs on Android 12 and supports seamless integration of third-party apps and platforms. With built-in ZigBee 3.0, RS485, dry contacts, digital inputs, and multi-network capabilities including Wi-Fi 6 and Bluetooth 5.0, the HyPanel Supreme delivers advanced whole-house automation. Its built-in gesture, temperature, humidity, proximity, and light sensors make it a sophisticated hub for intelligent living.
Key Features:
- 12.35-inch touchscreen with metal frame
- 2K (2560×1600) UHD display
- Built-in with 6 dry contact outputs, 8 digital inputs, and RS485 port
- Supports multiple communication protocols: Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0
- Integrated environmental sensors including temperature, humidity, light, and proximity
- Gesture recognition supported
- Powered by Android 12 for fast and smooth performance
- Combines intercom, ZigBee gateway, and smart home control panel in one device
- Compatible with various third-party smart devices and platforms
Product Specifications:
- Manufacturer: Akubela
- Model: PHX1-ST
- Operating System: Android 12
- RAM / ROM: 4GB / 32GB
- Environment: For indoor use only
- Screen Size: 12.35” multi-touch screen
- Screen Resolution: 2560×1600 pixels
- Screen Brightness: 400 cd/㎡
- Wi-Fi: WiFi 6, @2.4GHz/5GHz
- Bluetooth: Bluetooth 5.0
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- Power Supply: 12-24VDC
- Digital Input: 8 gang, 0-5VDC
- Dry Contact Output (AC): 4 gang, 100 ~ 240VAC, rated current: 3A
- Dry Contact Output (DC): 2 gang, 0-30VDC, rated current: 2A
- Wire Range: 1.5 ~ 2.5mm² (15 ~ 13AWG)
- Wire Gauge: 0.08 ~ 0.5mm² (28 ~ 20AWG)
- RS485 Port: Supported
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- Microphone: Dual microphones, -26dBFS
- Speaker: Dual speakers, 4Ω / 2W
- Gesture Recognition Sensor: Supported
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
- Temperature Sensor: ±1℃, range: -10℃ ~ 50℃
- Humidity Sensor: ±5%, range: 10% ~ 90%RH, without condensation
