Akubela HyPanel Ultra PH81-ST
Smart Home Control Center, 10.36'' touchscreen, Android OS, ZigBee gateway, Wi-Fi, Bluetooth 5.0

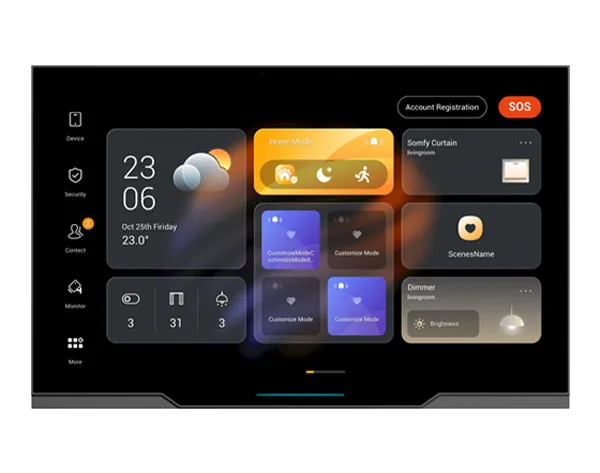

Akubela PH81-ST HyPanel Ultra is a cutting-edge 10.36-inch smart control panel built for seamless whole-home automation. Featuring a 2K high-definition display with ultra-slim bezels, this Android 12-powered panel integrates ZigBee 3.0, RS485, dry contact and digital input capabilities. With support for Wi-Fi 6, Bluetooth 5.0, and multiple sensors, HyPanel Ultra enables effortless interaction with third-party platforms and devices—delivering intuitive, centralized control for a truly smart living environment.
Key Features:
- 10.36-inch touchscreen with premium metal frame
- 2K (2000×1200) UHD display for high clarity
- Built-in 6 dry contact outputs, 8 digital inputs, and RS485 port
- Supports multiple communication protocols: Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0
- Equipped with a variety of built-in environmental sensors
- Powered by Android 12 for seamless performance
- Combines intercom, ZigBee gateway, and smart home control panel in a single unit
- Compatible with various third-party smart devices and platforms
Product Specifications:
- Manufacturer: Akubela
- Model: PH81-ST
- Operating System: Android 12
- RAM / ROM: 4GB / 32GB
- Environment: For indoor use only
- Screen Size: 10.36” multi-touch screen
- Screen Resolution: 2000×1200 pixels
- Screen Brightness: 360 cd/㎡
- Wi-Fi: WiFi 6, @2.4GHz/5GHz
- Bluetooth: Bluetooth 5.0
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- Power Supply: 12-24VDC
- Digital Input: 8 gang, 0-5VDC
- Dry Contact Output: 4 gang, 100 ~ 240VAC, rated current: 3A
- Dry Contact Output (DC): 2 gang, 0-30VDC, rated current: 2A
- Wire Range: 1.5 ~ 2.5mm² (15 ~ 13AWG)
- Wire Gauge: 0.08 ~ 0.5mm² (28 ~ 20AWG)
- RS485 Port: Supported
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- Microphone: Dual microphones, -26dBFS
- Speaker: Dual speakers, 4Ω / 2W
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
- Temperature Sensor: ±1℃, range: -10℃ ~ 50℃
- Humidity Sensor: ±5%, range: 10% ~ 90%RH, without condensation
