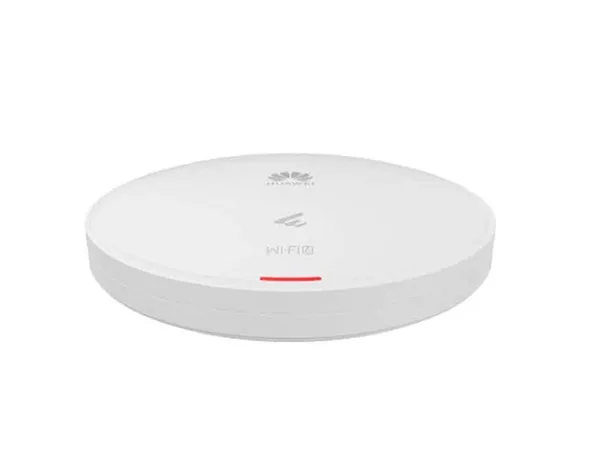

Huawei eKitEngine AP661 Access Point
Triple-radio high-density Wi-Fi 6 access point with smart antennas, 6.575 Gbps speed, and cloud management
Huawei eKitEngine AP661 is a next-generation indoor access point compliant with the Wi-Fi 6 (802.11ax) standard. It features triple-radio support across dual 5 GHz and 2.4 GHz bands, with MU-MIMO and 1024-QAM technologies, achieving a maximum throughput of up to 6.575 Gbps. Equipped with built-in smart antennas that dynamically adjust coverage direction and signal strength, the AP delivers precise and always-on Wi-Fi coverage, ideal for high-density scenarios such as enterprise offices, educational institutions, and stadiums. The AP661 supports flexible deployment with Fit, Fat, and cloud-managed modes, integrates advanced interference mitigation, traffic control, wireless and wired security features, and supports application-layer visibility and control. It also offers a USB port for IoT expansion and BLE 5.2 for advanced remote operations.
Key Features:
- Triple-radio indoor AP with 2.4 GHz + dual 5 GHz MIMO
- Smart antennas for adaptive coverage and interference suppression
- Supports Wi-Fi 6 (802.11ax) with MU-MIMO and 1024-QAM
- 160 MHz bandwidth for up to 6.575 Gbps device rate
- Fit, Fat, and cloud-based management modes
- IoT expansion via USB (ZigBee, RFID)
- BLE 5.2 for remote wireless management
- Advanced interference mitigation with DFA and EDCA
- Application-layer traffic identification and control
- Comprehensive security: WPA3, WIDS/WIPS, IPsec
- Built-in support for leader AP mode and plug-and-play deployment
- Cloud-managed with visualized monitoring and auto configuration
Product Specifications:
- Manufacturer: Huawei
- Model: eKitEngine AP661
- Product type: Indoor access point
- Wi-Fi standard: IEEE 802.11ax (Wi-Fi 6), backward compatible
- Max data rate: 6.575 Gbps
- Radios: Triple-radio (2.4 GHz 2×2 MIMO + 5 GHz 2×2 MIMO + 5 GHz 4×4 MIMO)
- Smart antennas: Built-in, directional adaptive coverage
- Bluetooth: BLE 5.2
- USB port: 1 × for IoT expansion
- Ports: 1 × 10M/100M/GE/2.5GE, 1 × 10M/100M/GE
- Mounting: Wall, ceiling, T-rail
- Dimensions: Φ 220 mm × 50 mm
- Weight: 1.08 kg
- Power supply: PoE (IEEE 802.3at) or 12V DC ±10%
- Max power consumption: 21.2 W (excluding USB)
- Operating temperature: –10°C to +50°C
- Storage temperature: –40°C to +70°C
- Operating humidity: 5% to 95% non-condensing
- Altitude: –60 m to +5000 m
- IP rating: IP41
- Antenna gain: 2.4 GHz: 4 dBi, 5 GHz: 5 dBi
- Max SSIDs per radio: 16
- Max STAs: 1536 (512 per radio)
- Security: WPA3, WPA2, WEP, MAC/Auth Portal, WIDS/WIPS
- Roaming: Supports 802.11k/v/r
- Cloud management: Supported with plug-and-play and visual O&M
- Application identification: Supports 1500+ applications
- Traffic control: Rate limiting, scheduling, prioritization
- Interference control: DFA, spectrum analysis, SmartRadio
- Compliance: CE, UL, FCC, IEEE 802.11a/b/g/n/ac/ax
