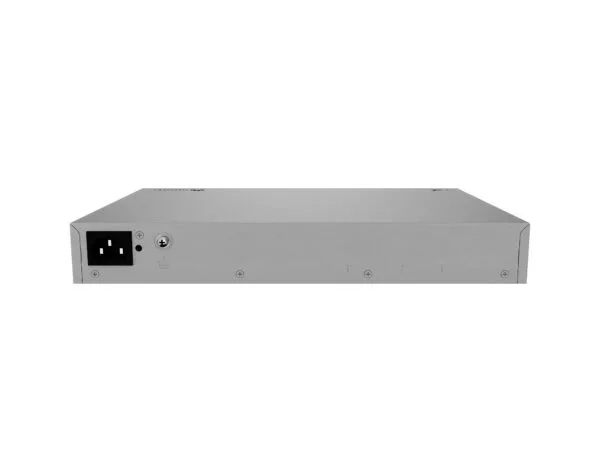

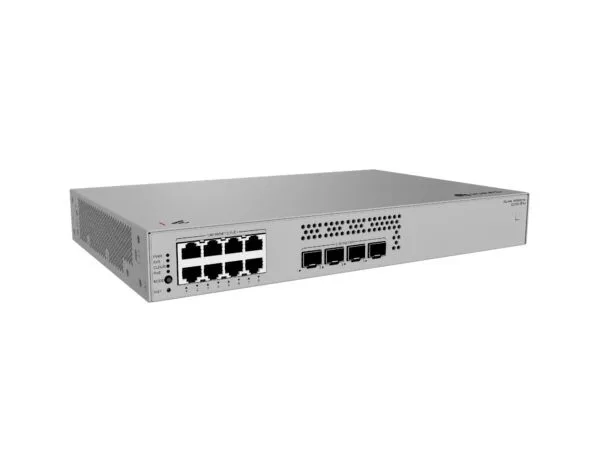

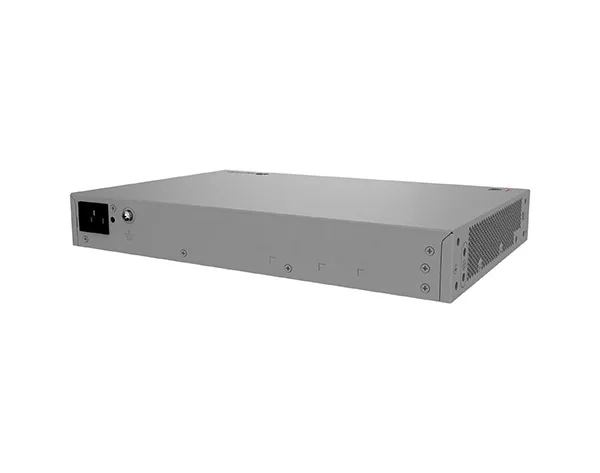

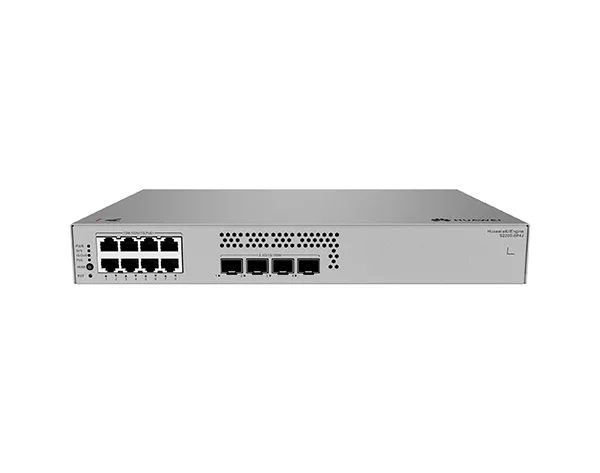

Huawei eKitEngine S220S-8P4J Switch
Layer 2 Gigabit Switch with PoE+, 8 GE Ports, 4 × 2.5GE SFP Uplinks, Fanless, 36 Gbps Switching Capacity
Huawei eKitEngine S220S-8P4J is a Layer 2 managed switch designed for small and medium-sized businesses. It provides 8 × 10/100/1000BASE-T PoE+ downlink ports and 4 × 2.5GE SFP uplink ports. With a switching capacity of 36 Gbps and packet forwarding rate of 27 Mpps, this model ensures efficient data handling. It includes 128 W PoE power, fanless natural heat dissipation, and supports a wide input voltage range (90 V AC to 300 V AC, 47 Hz to 63 Hz). Operating temperature range is –5°C to +40°C, and it supports cloud management via Huawei eKit App, SNC, and web system.
Key Features:
- 8 GE PoE+ ports with 128 W PoE
- 4 × 2.5GE SFP uplink ports
- 36 Gbps switching capacity
- Fanless natural heat dissipation
- Cloud and on-premise management
- Supports ERPS and VLAN features
- Perpetual PoE and fast PoE
- Smart upgrade with HOUP platform
Product Specifications:
- Manufacturer: Huawei
- Model: S220S-8P4J
- Switching capacity: 36 Gbps
- Packet forwarding rate: 27 Mpps
- Downlink ports: 8 × 10/100/1000BASE-T PoE+
- Uplink ports: 4 × 2.5GE SFP
- PoE power: 128 W
- Dimensions: 43.6 mm × 320 mm × 210 mm
- Chassis height: 1 U
- Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
- Input voltage range: 90 V AC to 300 V AC, 47 Hz to 63 Hz
- Operating temperature: –5°C to +40°C
- Storage temperature: –40°C to +70°C
- Operating humidity: 5% RH to 95% RH, non-condensing
- Heat dissipation: Fanless, natural cooling
