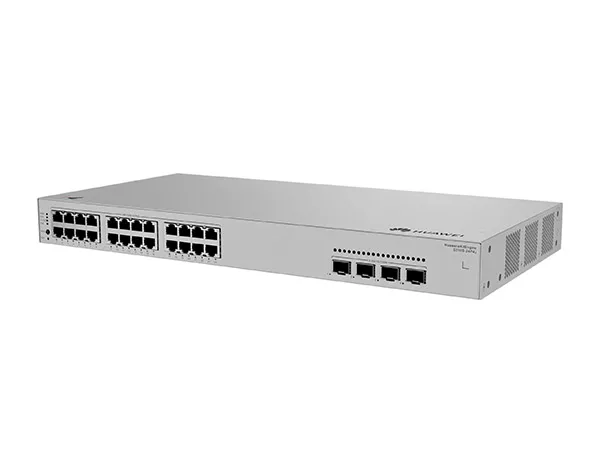

Huawei eKitEngine S310S-24P4J Switch
Enterprise-Class 24-Port PoE+ Switch with Advanced Security and Cloud Management for SMEs
Huawei eKitEngine S310S-24P4J is a high-performance managed PoE+ switch designed for small and medium-sized businesses. It features 24 Gigabit Ethernet ports with PoE+ capability and 4 uplink ports supporting 2.5GE for flexible network expansion. With a total PoE power budget of 400W, it efficiently powers IP cameras, access points, and VoIP phones, making it ideal for offices, schools, and hospitality environments. The switch integrates advanced security features, including DHCP snooping, DoS attack prevention, and AAA authentication, ensuring a secure and stable network. Management is simplified through Huawei’s eKit App, enabling both cloud-based and on-premises control.
Key Features:
- 24 Gigabit Ethernet ports with PoE+ support
- 400W total PoE power budget for IP devices
- 4 x 2.5GE SFP uplink ports for high-speed connectivity
- Advanced security features including DHCP snooping and DoS defense
- Supports ERPS, STP, and RSTP for network reliability
- Cloud and local management through Huawei eKit App
- Fan and intelligent air-cooling design for efficient heat dissipation
Product Specifications:
- Manufacturer: Huawei
- Model: eKitEngine S310S-24P4J
- Switching Capacity: 68 Gbps
- Packet Forwarding Rate: 51 Mpps
- Downlink Ports: 24 x 10/100/1000BASE-T PoE+ ports
- Uplink Ports: 4 x 2.5GE SFP ports
- PoE: Supported, 400W total budget
- Dimensions (H x W x D): 43.6 mm x 442 mm x 220 mm
- Chassis Height: 1U
- Power Supply: Built-in AC power module
- Rated Voltage: 100 V AC to 240 V AC, 50/60 Hz
- Voltage Range: 90 V AC to 290 V AC, 45 Hz to 65 Hz
- Operating Temperature: –5°C to +40°C
- Storage Temperature: –40°C to +70°C
- Operating Humidity: 5% RH to 95% RH, non-condensing
- Heat Dissipation: Air cooling, intelligent fan speed adjustment
