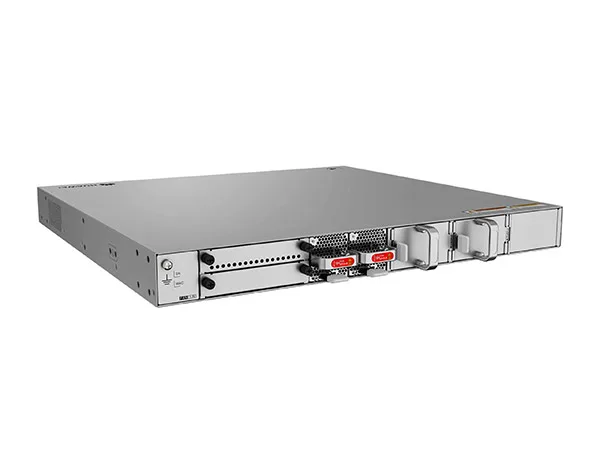

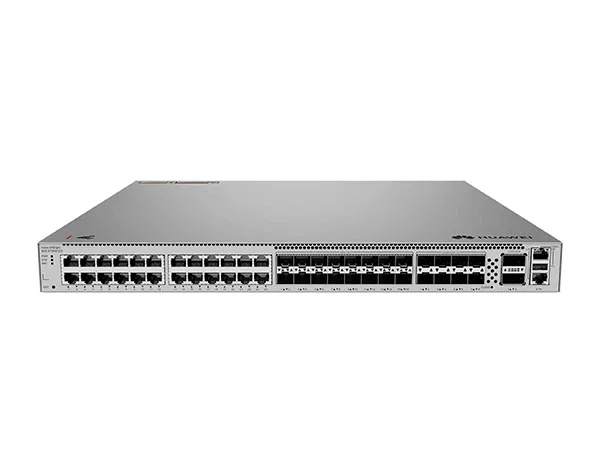

Huawei eKitEngine S620-24T16X8Y2CZ Switch
10GE Hybrid Core Switch, 24 Gigabit Ports, 16 x 10GE SFP+, 8 x 25GE SFP28, 2 x 100GE QSFP28, 1168 Gbps Capacity
Huawei eKitEngine S620-24T16X8Y2CZ is a fully managed 10GE hybrid optical-electrical core switch designed for SMBs requiring high-performance and flexible networking. It offers 24 Gigabit electrical ports, 16 x 10GE SFP+, 8 x 25GE SFP28, and 2 x 40GE/100GE uplink ports, delivering a switching capacity of 1168 Gbps and a forwarding rate of 867 Mpps. This switch supports advanced Layer 3 routing, intelligent stacking, VRRP, M-LAG, and Ethernet Ring Protection (ERPS) for enhanced reliability. With built-in security features, rich QoS policies, and dual management modes (cloud and on-premises), the S620-24T16X8Y2CZ ensures simplified operations, future-proof scalability, and superior user experience for large-scale enterprise or campus networks.
Key Features:
- Supports 24 x 10/100/1000M BASE-T ports for flexible access
- 16 x 10GE SFP+ ports and 8 x 25GE SFP28 ports for high-speed uplinks
- Includes 2 x 40GE/100GE QSFP28 uplink ports for backbone connectivity
- Delivers 1168 Gbps switching capacity and 867 Mpps forwarding rate
- Advanced Layer 3 routing with OSPF, BGP, IS-IS, and VRRP support
- Supports iStack for simplified management and device virtualization
- Resiliency features: ERPS, Smart Link, and M-LAG for high availability
- Cloud-based and on-premise management via Huawei eKit App or CLI/Web UI
- Integrated QoS and security features including user-based access control
Product Specifications:
- Manufacturer: Huawei
- Model: eKitEngine S620-24T16X8Y2CZ
- Fixed Ports: 24 x 10/100/1000M BASE-T, 16 x FE/GE/2.5GE/10GE SFP+, 8 x GE/2.5GE/10GE/25GE SFP28, 2 x 40GE/100GE QSFP28
- Switching Capacity: 1168 Gbps
- Forwarding Rate: 867 Mpps
- Expansion Slot: 1 reserved for expansion card
- Dimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm
- Height: 1U
- Weight: 6.31 kg
- Power Supply: 600 W AC module (included), supports 180 W AC, 240 W DC, and 400 W DC modules
- Input Voltage: AC 100–240 V, DC -48 to -60 V, HVDC 240 V
- Power Consumption: Typical: 122 W, Maximum: 127 W
- Operating Temperature: -5°C to +45°C
- Relative Humidity: 5% to 95% (non-condensing)
- Heat Dissipation: Air cooling with intelligent fan speed control
