IHS2-75SA

BYOM | HD cloud conferencing | Wi-Fi 6 for direct projection

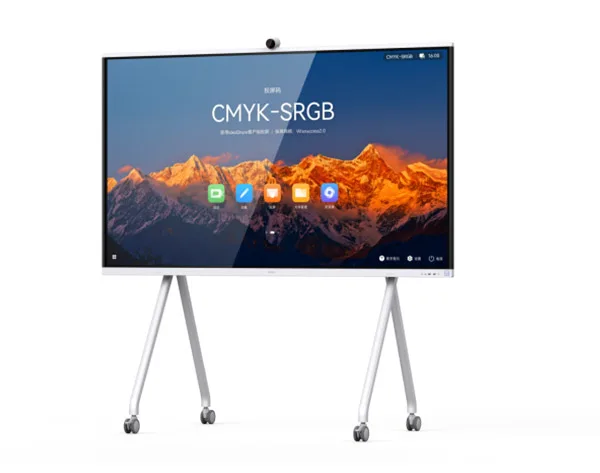

The Huawei IdeaHub S2 IHS2-75SA is the ultimate interactive display designed to transform your workspace and elevate your team’s collaboration. Conduct seamless video conferences with the integrated 4K camera, complete with a privacy-ensuring lens cover. AI-powered features like voice tracking and auto-framing keep your meetings crystal clear, while real-time handwriting recognition and ultra-low writing latency provide a natural pen-on-paper experience for brainstorming and note-taking.

The IdeaHub S2 IHS2-75SA boasts a stunning 4K soft-light display with ultra-narrow bezels for maximum immersion. Effortlessly switch between operating systems with a single tap, eliminating the need for complex configurations

Unleash the full potential of your team with the Huawei IdeaHub S2 IHS2-75SA, the ultimate hub for immersive meetings and enhanced productivity.

HUAWEI IDEAHUB IHS2-75SA Key Features:

4K camera with a lens cover to ensure privacy
2 μm² ultra-large photosite size doubles the signal-to-noise ratio (SNR)
Wi-Fi 6 for direct projection
AI-powered Audio and Video (Voice tracking, Auto-Framing)
Handwriting recognition
Ultra-low writing latency
Intelligent Whiteboard
4K soft-light screen with ultra-narrow bezels
One-tap switching between operation systems without OPS configuration
Easy-to-access front-panel NFC, USB Type-C, USB 3.0, and power button
TÜV Rheinland Low Blue Light Certification

HUAWEI IDEAHUB IHS2-75SA Product Specifications:

Manufacturer: HUAWEI
Model: IHS2-75SA
Operation system: HarmonyOS and Windows
BYOM: Supported
Wi-Fi 6: Supported
NFC: Supported
Size: 75 inch
Product dimensions (H x W x D):9 mm x 1705.7 mm x 91.8 mm

HUAWEI IDEAHUB IHS2-75SATechnical Specifications:

Display

Screen Lamination: Zero-gap bonding
Resolution: 4K (3840 x 2160 pixels)
Back Light Type: D-LED

Camera

Resolution: 1800 lines
Sensor pixel size: 1.5 μm x 1.5 μm
Zoom: 2x digital zoom Speaker
Horizontal FoV: 80°
TV distortion: <2%
Lens cover: √

Speakers

Frequency domain: 80 Hz to 20 kHz
Quantity: 2 x high-frequency speaker+2 x full-frequency speaker
Maximum power: 40 W

Component

Stylus pen: 2
Device: 1
IdeaShare Key: Optional (Type-C/Type-A port)
OPS: Optional
Wall-mounted bracket: Optional (65″, 75″, and 86″)
Rolling stand: Optional (65″, 75″, and 86″)

Microphone

Frequency domain: 80 Hz to 20 kHz
Voice Pickup Range: Up to 12m
Sound Pickup Angle: 180°
Optimized sound pickup: Sound source location, echo cancellation, and automatic gain control

Wireless connection

Wi-Fi module: Wi-Fi 6
NFC: √
Frequency: 2.4 GHz + 5 GHz

AI Function

Auto-Framing: √
Intelligent tracking: √
DNN-based dereverberation*: √

* Deep Neural Network (DNN)

Interface

Video input: 1 x HDMI (up to 4K)
Video output: 1 x HDMI (up to 4K)
Audio input:
- 1 x 3.5 mm LINE IN
- 1 x HD-AI
Audio output: 1 x 3.5 mm LINE OUT
Other ports:
- 3 x USB Type-A
- 3.0 1 x USB Type-C
- 1 x RJ45 (10/100/1000 Mbit/s LAN)

System

CPU: 8-core A73
RAM: 8 GB
Flash: 64 GB
OS: HarmonyOS and Windows *
* An OPS plug-in computer is required for Windows
Security: Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, secure boot, and TEE
Language: Simplified Chinese, English, French, Japanese, Arabic, and Spanish

Conferencing

Dual streams (audio/video + data sharing): On-premises conference*: 1080p 30 fps + 1080p 30 fps/4K 8 fps
Huawei Cloud Meeting and WeLink: 1080p 30 fps + 1080p 30 fps/4K 8 fps
On-premises conference*: The IdeaHub S2 does not support on-premises conferences by default. You need a license to upgrade the video and presentation channels to 1080p 30 fps.
BYOM: √
Native meeting: Huawei Cloud Meeting and WeLink

Writing

Writing latency: 16 ms Intelligent writing
Recognition: Supports recognition of Chinese, English, and 11 types of graphics
Touch sensing distance: ≤ 1.5mm
