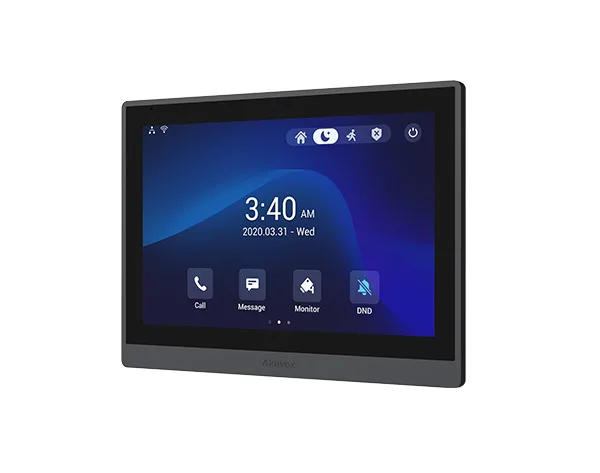

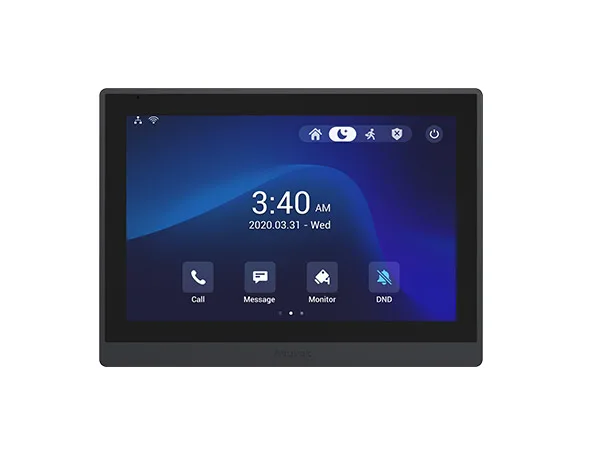

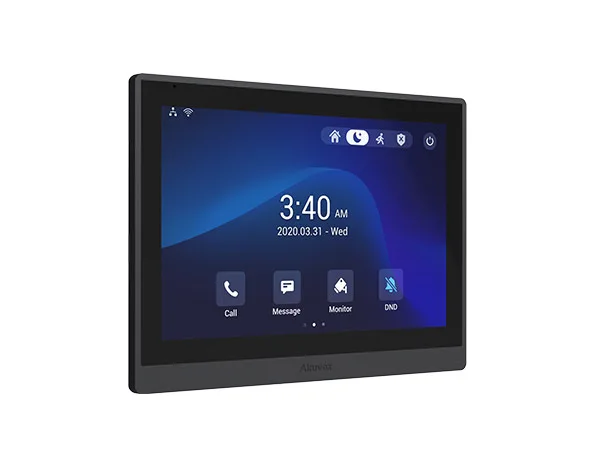

Akuvox IT88s
Indoor Monitor – Android Smart intercom
Akuvox IT88S Indoor Monitor is a smart intercom with an Android 9 operating system and a high-performance CPU; suitable for apartments, complexes, home automation systems and villas. With built-in dual speakers and dual microphones, it allows two-way audio communication with other units in the network. All in-home automation devices can be easily managed and controlled by it. The 10-inch capacitive touch screen IT88S offers energy-saving mode. Besides that, it also offers an offline voice assistant feature.
Akuvox IT88s - Key Features:
- 10″ capacitive touch screen with energy saving mode
- HD audio and video communication
- Dual speakers
- Built-in offline voice assistant
- 1 Micro SD Slot
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Akuvox IT88s – Product Specification:
- Manufacturer: Akuvox
- Model: IT88S
- Resolution: 1280 x 800
- Dimension:5×29.75mm
- Front panel: Aluminium alloy
- Operating System: Android 9
- Tamper Resistant: Support
- Display Mode: Normally black, Transmissive
- Installation: Wall-mounted &Desktop
Akuvox IT88s Technical Specifications:
At a Glance
- Android 9 OS
- 10-inch capacitive touch screen with energy saving mode
- Reception of a HD picture from the door communicator
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
- Built-in smart voice assistant
Physical & Power
- Front panel: Aluminium alloy
- Display: 10 Inch IPS LCD
- Screen: 10 Inch capacitive touch screen
- RAM / ROM: 2GB / 8GB
- Memory slot: 1 Micro SD slot
- RS485 port: Support
- Bell in: 1
- Relays Out: 2
- Microphone: -26 dB
- Speaker: Dual speakers, 4Ω/ 3W
- IO: 8
- Tamper Resistant: Support
- Ethernet ports: 1 x RJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Installation: Wall-mounted &Desktop
- Wall-mounted & Desktop Dimension: 251×182.5×29.75mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally black,Transmissive
- LCD Size: 10 inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280 x 800
- Contrast ratio: 900:1
- Luminance: 350 cd/m2
- Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Voice assistant
- Voice pickup distance up to 5 meters
- Voice recognition accuracy up to 95%
- Privacy protection with native voice data
- Support English
Application Scenario
- Modern interiors
- Apartment complexes
- Home automation systems
- Villas
