Yealink SkySound CS10-D Dante Ceiling Speaker
Coaxial Network Ceiling Loudspeaker, High-Fidelity Audio, 5.7" woofer, 1.1" tweeter, PoE+ for modern conference rooms
Yealink SkySound CS10-D is a sleek, low-profile 2-way coaxial Dante ceiling speaker specifically designed to meet the needs of modern conference rooms. Equipped with a high-quality 5.7-inch woofer and a 1.1-inch tweeter, this speaker delivers exceptional high-fidelity audio performance that enhances every meeting. Thanks to its use of the Dante protocol, the CS10-D offers seamless integration with networked audio systems, enabling efficient and reliable audio distribution across your organization. The inclusion of PoE+ (Power over Ethernet Plus) and an integrated DAC (digital-to-analog converter) simplifies installation, providing a hassle-free, plug-and-play setup that minimizes wiring complexity.

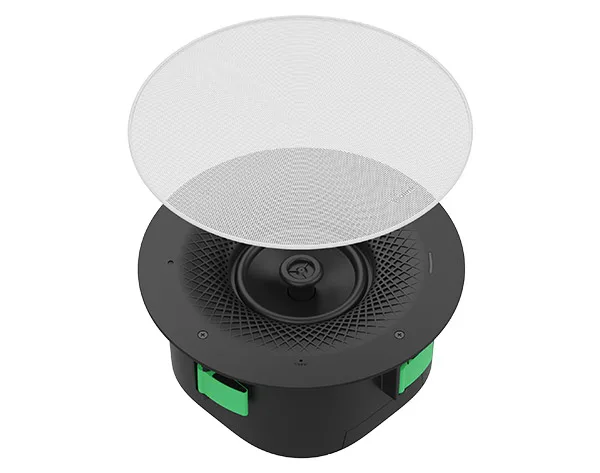

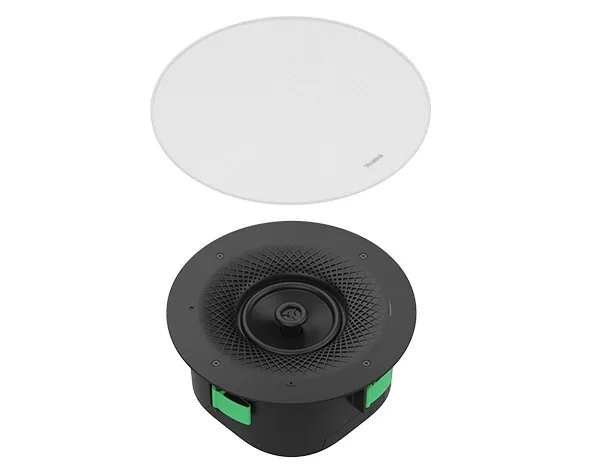

With an impressive 120° coverage angle and a peak sound pressure level (SPL) of 99dB, the Yealink SkySound CS10-D ensures consistent sound quality and volume throughout the room. Its acoustics have been specifically tuned for speech clarity, making it ideal for conference calls, presentations, and collaborative discussions. The speaker’s paintable magnetic grille allows it to be customized to match any ceiling color, seamlessly blending into the environment without compromising style. Additionally, the versatile ceiling mounting options make it easy to install in various conference room layouts, offering both aesthetic appeal and superior sound performance for professional meetings.
Key Features:
- 2-way coaxial with 5.7-inch woofer and 1.1-inch tweeter
- High-fidelity Dante audio with 99dB SPL and 120° coverage
- Speech-tuned acoustics for clear conferences
- PoE+-enabled with integrated DAC for digital audio
- Versatile ceiling mounting for various grid systems

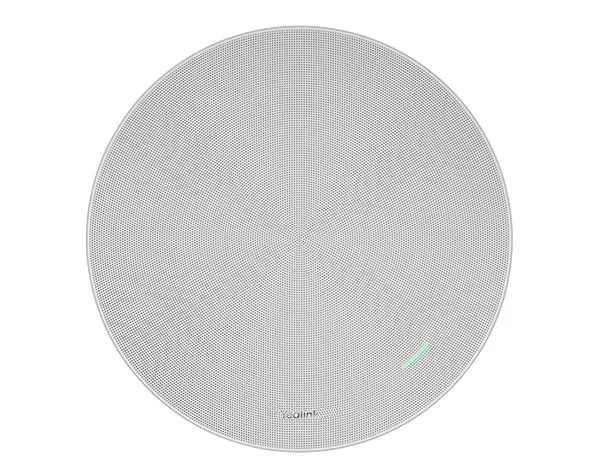

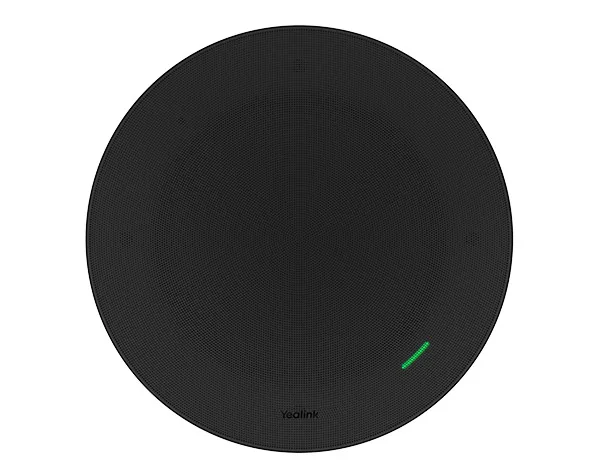

- Paintable magnetic grille in black or white
- Low-profile 120mm design for modern interiors
Product Specifications:
- Manufacturer: Yealink
- Model: CS10-D
- Speaker: 5.7-inch woofer, 1.1-inch tweeter, 2-way coaxial
- Frequency Response: 100Hz-20kHz
- SPL: 99dB at 20W 1m, 88dB sensitivity
- Coverage Angle: 120° nominal
- Connectivity: RJ-45, PoE+ 802.3at, Dante protocol
- Power: 24W rated, 20W typical
- Installation: ceiling, compatible with 60x60cm grids
- Dimensions: 294×125.8mm with grille, weight 2.808kg
- Material: PA with 15% GF, aluminum alloy, PC/ABS
