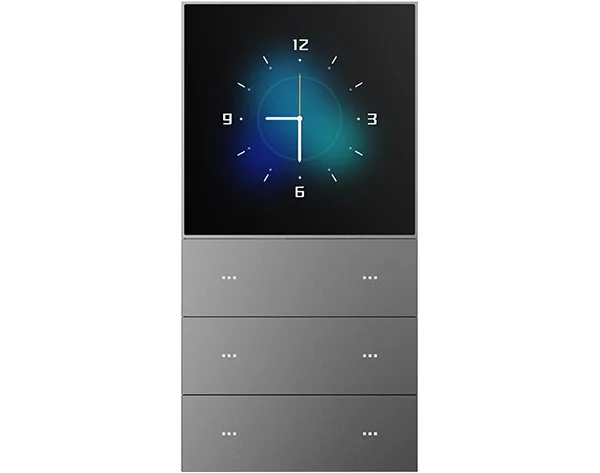

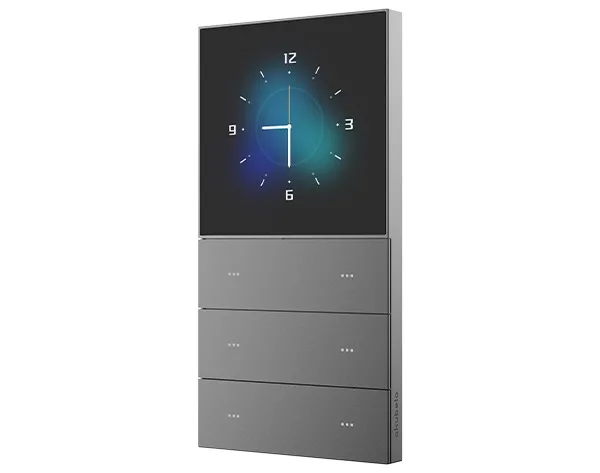

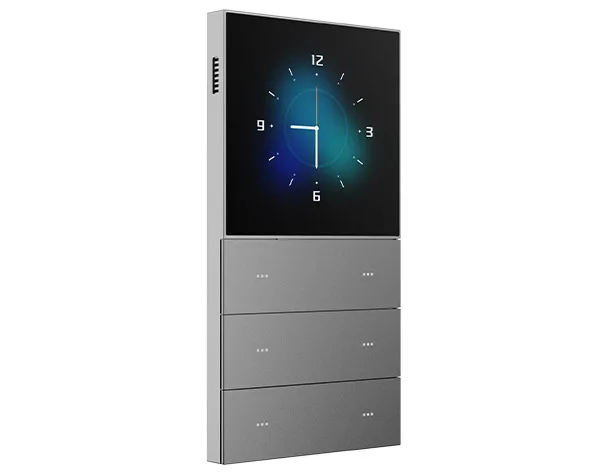

Akubela HyPanel KeyPlus KS53-R2-EU
Smart Home Control Panel, 4” screen, Android OS, ZigBee gateway, Bluetooth 5.3.
akubela HyPanel KS53-R2-EU KeyPlus is a smart control panel running Android 13. Its all-in-one design combines smart intercom, a ZigBee gateway, and home automation, ensuring broad ecosystem compatibility. With multi-modal interaction, it delivers a seamless smart home experience for the entire family.
Key Features:
- Excellent performance with Android 13 system
- 4” multi-touch screen with energy saving mode
- 6 touch buttons, suitable for the whole family
- 2-gang relay, can be connected to lights directly
- Smart intercom, ZigBee gateway, home automation ALL IN ONE
- EU standard flush mounted box
Product Specifications:
- Manufacturer: Akubela
- Model: KS53-R2-EU
- Material: V0 fireproof PC
- Operating System: Android 13
- RAM / ROM: 2GB / 8GB
- Power Supply: 180 ~ 260VAC, 50Hz
- Built-in Relay Capacity: 16A
- Output: 2 gang, 1200W total; 800W/gang for resistive; 400W/gang for LED/CFL
- Wire Range: 0.5 ~ 2.5mm² (24 ~ 12AWG)
- Power Meter: Supported
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- Microphone: Dual microphones, -26dBFS
- Speaker: Single speaker, 8Ω / 1.5W
- Screen Size: 4” multi-touch screen
- Screen Resolution: 480×480 pixels
- Screen Brightness: 210 cd/㎡
- Wi-Fi: WiFi6, IEEE 802.11a/b/g/n/ac/ax
- Bluetooth: Bluetooth 5.3
- Environment: For indoor use only
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
