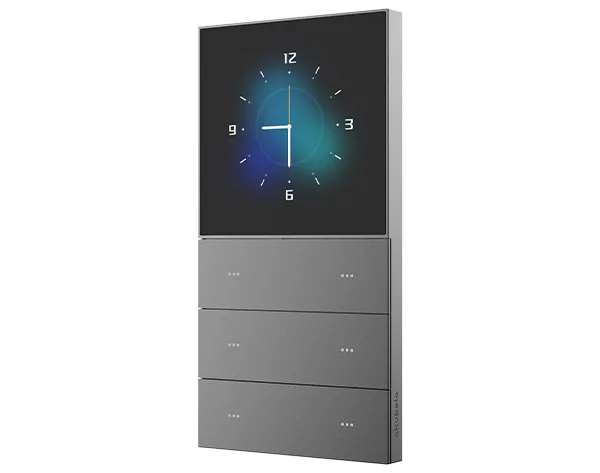

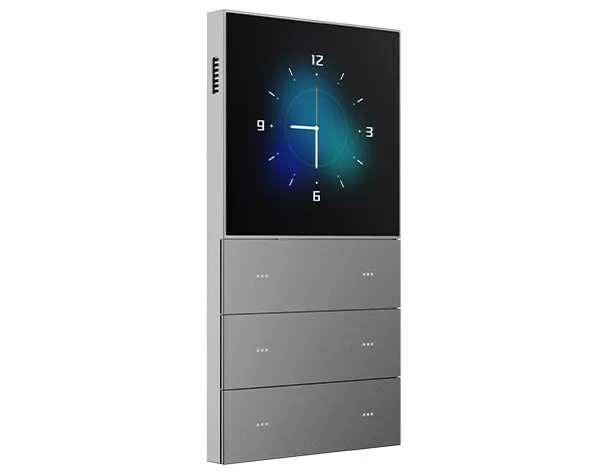

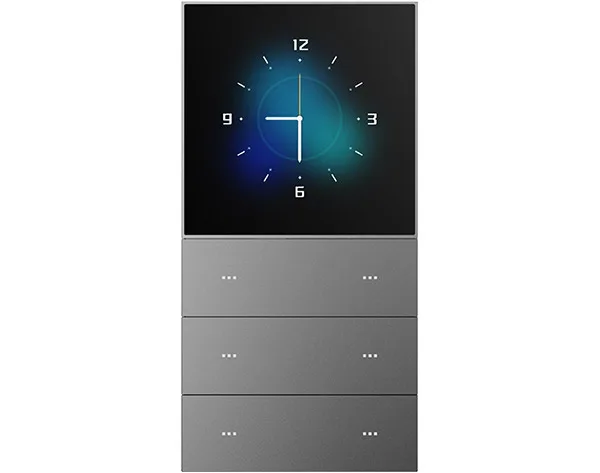

Akubela HyPanel KS53-R2-US
Smart Home Control Panel, 4” screen, Android OS, ZigBee gateway, Bluetooth 5.3.
Akubela KS53-R2-US HyPanel KeyPlus is an advanced Android 13-based smart control panel, built to integrate smart intercom, ZigBee gateway, and home automation in one unit. Designed with a 4” multi-touch screen and six responsive touch buttons, it offers intuitive control for lighting and scenes. With WiFi 6, Bluetooth 5.3, ZigBee 3.0 supporting up to 128 devices, and built-in sensors, it replaces traditional switches and transforms your smart home into a seamless, connected experience—optimized for US flush mount standards.
Key Features:
- Excellent performance with Android 13 system
- 4” multi-touch screen with energy saving mode
- 6 touch buttons, suitable for the whole family
- 2-gang relay, can be connected to lights directly
- Smart intercom, ZigBee gateway, home automation ALL IN ONE
- EU standard flush mounted box
Product Specifications:
- Manufacturer: Akubela
- Model: KS53-R2-US
- Material: V0 fireproof PC
- Operating System: Android 13
- RAM / ROM: 2GB / 8GB
- Power Supply: 180 ~ 260VAC, 50Hz
- Built-in Relay Capacity: 16A
- Output: 2 gang, 400W total; 200W/gang for resistive; 200W/gang for LED/CFL
- Wire Range: 1.5 ~ 4.0mm² (16 ~ 10AWG)
- Power Meter: Supported
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- Screen Size: 4” multi-touch screen
- Screen Resolution: 480×480 pixels
- Screen Brightness: 210 cd/㎡
- Environment: For indoor use only
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- Microphone: Dual microphones, -26dBFS
- Speaker: Single speaker, 8Ω / 1.5W
- Wi-Fi: WiFi6, IEEE 802.11a/b/g/n/ac/ax
- Bluetooth: Bluetooth 5.3
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
