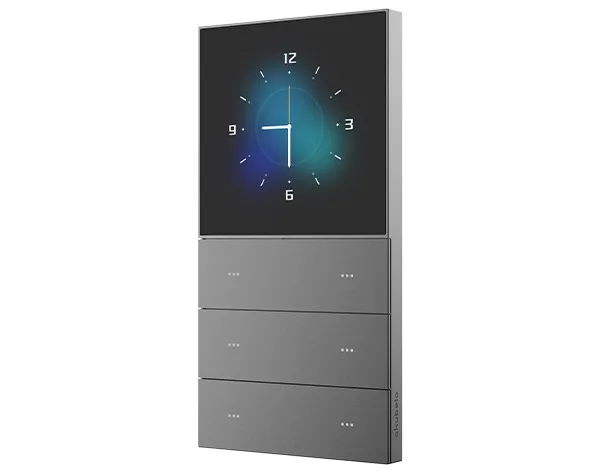

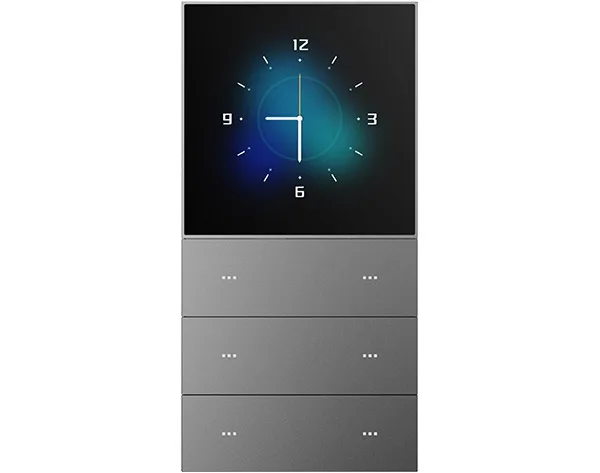

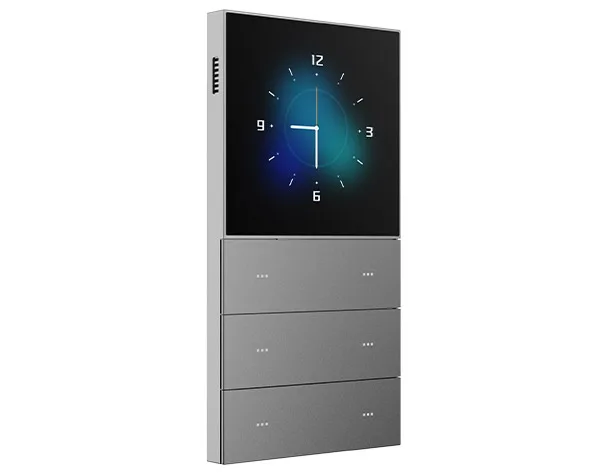

Akubela HyPanel Plus PS52N-R2 -US
Smart Home Control Panel, 4'' Touchscreen, Android 12 OS, ZigBee 3.0 Gateway, Wi-Fi 6, Bluetooth 5.4, 2-Gang Relay.
Akubela PS52N-R2-US HyPanel Plus is a powerful smart control panel tailored for modern homes. Featuring Android 12, a 4-inch multi-touch screen, and 2 touch buttons, it replaces traditional switches with a built-in 2-gang relay for direct light control. This all-in-one solution unifies ZigBee 3.0, smart intercom, and full home automation with support for WiFi 6, Bluetooth 5.4, and a wide range of sensors. It also includes power metering and installs flush in TH/US standard wall boxes, offering a seamless smart living experience.
Key Features:
- Excellent performance with Android 12 system
- 4” multi-touch screen with energy saving mode
- 2 touch buttons, suitable for the whole family
- 2-gang relay, can be connected to lights directly
- Smart intercom, ZigBee gateway, home automation – all in one
- Multiple built-in sensors for intelligent automation
Product Specifications:
- Model: PS52N-R2-US
- Power Supply: 100 ~ 250VAC, 50/60Hz
- Built-in Relay Capacity: 16A
- Output: 1 gang, 800W total; 800W/220V/gang (resistive); 400W/110V/gang (resistive); 400W/gang (LED/CFL)
- Wire Range: 1.5 ~ 4.0mm² (16 ~ 10AWG)
- Power Meter: Supported
- Operation System: Android 12
- RAM/ROM: 2GB / 8GB
- Screen Size: 4” multi-touch screen
- Screen Resolution: 480×480 pixels
- Screen Brightness: 210 cd/㎡
- Wi-Fi: WiFi 6, IEEE 802.11a/b/g/n/ac/ax
- Bluetooth: Bluetooth 5.4
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 128
- Microphone: Dual microphones, -26dBFS
- Speaker: Single speaker, 8Ω / 1.5W
- Material: Plastic
- Button: 2 touch buttons
- Environment: For indoor use only
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
- Temperature Sensor: ±1℃, Range: -10℃ ~ 55℃
- Humidity Sensor: ±5%, Range: 10% ~ 90%RH (non-condensing)
