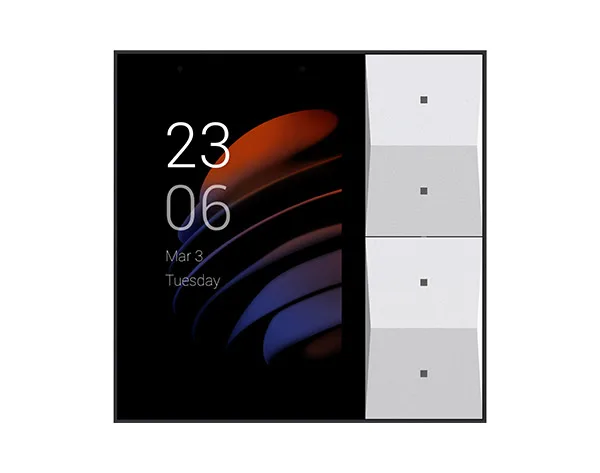

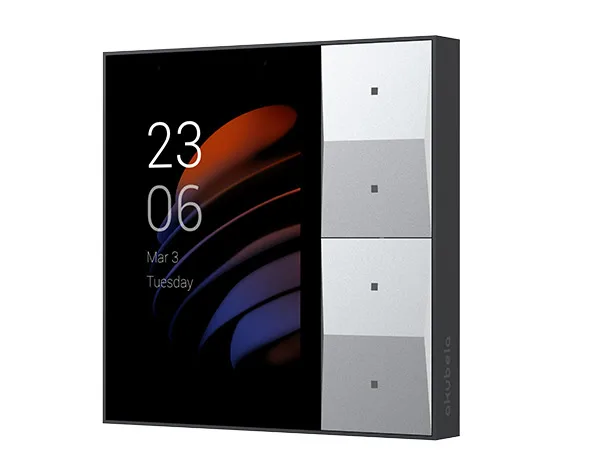

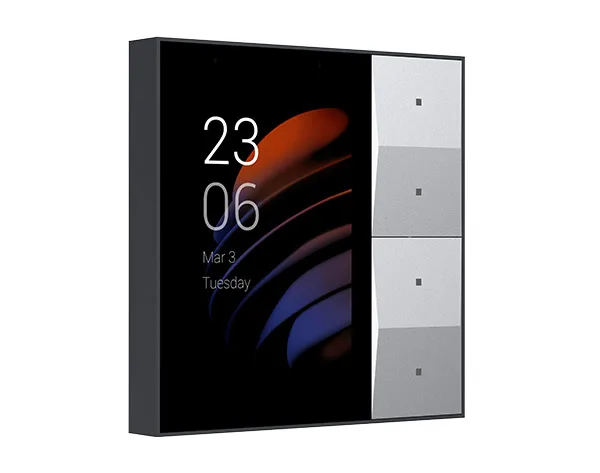

Akubela HyPanel Lite KS41-R2-EU
a smart home Center panel, Linux OS, ZigBee gateway, 3.27-inch screen, built-in sensors.
Akubela HyPanel Lite (KS41-R2-EU) is a Linux-based smart home control center that combines smart intercom, ZigBee gateway, and home automation in one elegant device. With a 3.27” touch screen, dual-gang switch, and built-in sensors, it replaces conventional wall switches while offering smart interaction through voice, touch, and app control. Designed for modern households, it provides power metering, multi-protocol connectivity, and EU-standard flush mounting for seamless integration into any smart home ecosystem.
Key Features:
- 3.27” touch screen with energy saving mode
- 4 metal buttons, suitable for the whole family
- Smart intercom, ZigBee gateway, home automation ALL IN ONE
- 2-gang switch, replace conventional switch
- Kinds of sensors built-in
- EU Standard flush mounted box
Product Specifications:
- Manufacturer: Akubela
- Model: KS41-R2-EU
- Power Supply: 180 ~ 260VAC, 50Hz
- Output: 2 gang, 1200W total; 800W/gang for resistive; 400W/gang for LED/CFL
- Wire Range: 0.5 ~ 2.5mm² (24 ~ 12AWG)
- Power Meter: Supported
- Operation System: Linux
- Microphone: Dual microphones, -26dBFS
- Speaker: Single speaker, 8Ω / 1.5W
- DDR / Flash: 128MB / 256MB
- Screen Size: 3.27” touch screen
- Screen Resolution: 320×480 pixels
- Screen Brightness: 210 cd/㎡
- Built-in Relay Capacity: 16A
- Bluetooth: Bluetooth 4.2
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 32
- Ethernet Port: 1×RJ45, 10/100Mbps adaptive
- Environment: For indoor use only
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low-level lux detection
- Temperature Sensor: ±1℃, range: -10℃ ~ 55℃
- Humidity Sensor: ±5%, range: 10% ~ 90%RH, without condensation
