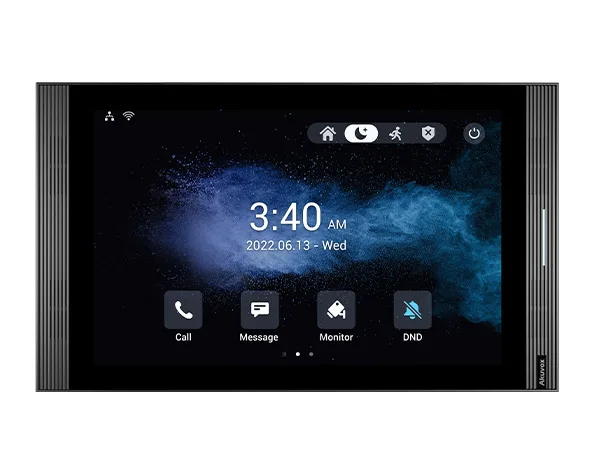

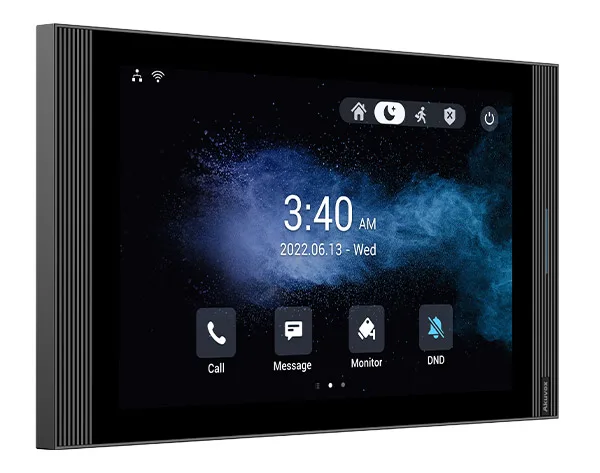

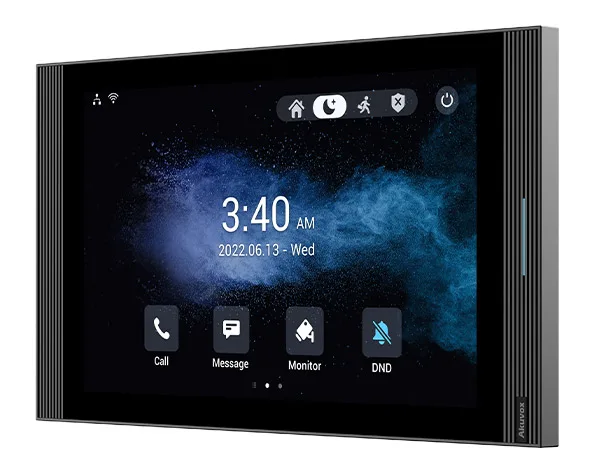

Akuvox S567

Akuvox S567

Indoor Monitor – Android Smart intercom

Akuvox S567 Indoor Monitor is a smart intercom with an Android 12 operating system; suitable for apartments, complexes, home automation systems and villas.  with built-in quad speakers and dual microphones, it allows two-way audio communication with other units in the network. All in-home automation devices can be easily managed and controlled by it. The 10-inch capacitive touch screen S567 has a built-in environment sensor that automatically adjusts the screen brightness. It also offers voice assistant and voice changer features.

Akuvox S567 - Key Features:
  • 10″ capacitive touch screen
  • Premium audio-visual intercom experience
  • Quad speakers
  • Supports Voice Changer
  • Built-in smart voice assistant
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
  • Automatic Gain Control
Akuvox S567 – Product Specification:
  • Manufacturer: Akuvox
  • Model: S567
  • Resolution: 1280 x 800
  • Dimension:5×165.1×22.8 mm
  • Operating System: Android 12
  • Tamper Resistant: Support
  • Display Mode: Normally black, Transmissive
  • Installation: Wall-mounted &Desktop
Akuvox S567 Technical Specifications:

At a Glance

  • Strong compatibility with Android 12 OS
  • Excellent audio-visual intercom experience with four high level speakers
  • Two-way audio communication with other units in the network
  • Complies with SIP standard for easy integration in every SIP capable PBXes
  • Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
  • Powered by PoE or external source
  • Built-in smart voice assistant
  • Support Voice Changer to protect the children and women living alone
  • Support US or European electrical wall box mounting

Physical & Power

  • Front panel: Plastic
  • Display: 10 Inch IPS LCD
  • Screen: 10 Inch
  • capacitive touch screen
  • RAM / ROM: 2GB / 8GB
  • RS485 port: Support
  • Bell in: 1
  • Relays Out: 1
  • Microphone: Dual
  • microphones ,-26 dB
  • Speaker: Quad speakers , 8Ω/ 2W
  • Alarm Input: 8
  • Tamper Resistant: Support
  • Ethernet ports: 1 x RJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Installation: Wall-mounted &Desktop
  • Wall-mounted & Desktop Dimension: 278×165.1×22.8 mm
  • Working Humidity: 10~90%
  • Working Temperature: -10°C ~ +45°C
  • Storage Temperature: -20°C ~ +70°C

Touch Screen Display

  • Display Mode: Normally black,Transmissive
  • LCD Size: 10 inch (Diagonal)
  • Aspect Ratio: 16:10
  • Resolution: 1280 x 800
  • Contrast ratio: 900:1
  • Luminance: 290 cd/m2
  • Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
  • Touch Screen: Projected capacitive

Audio

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
  • Automatic Gain Control

Video

  • Streaming formats: H.263 & H.264

Networking

  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs (include door access logs)

Voice assistant

  • Voice pickup distance up to 5 meters
  • Voice recognition accuracy up to 95%
  • Privacy protection with native voice data
  • Support English

Application Scenario

  • Modern interiors
  • Apartment complexes
  • Home automation systems
  • Villas
