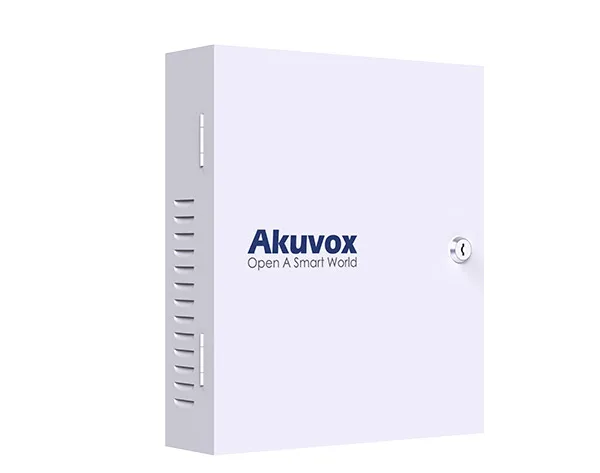

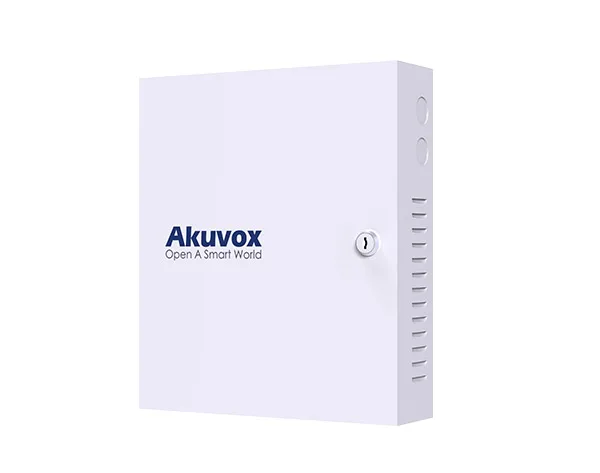

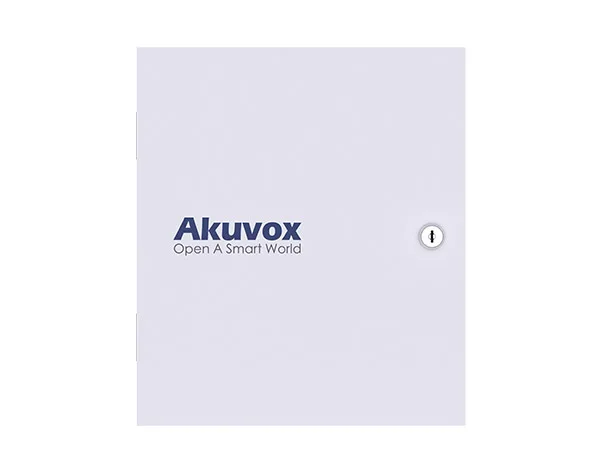

Akuvox EC33

Elevator Access Controller

Akuvox EC33 is an IP-based elevator access controller that works with 32 outputs that can be used to control the elevator buttons, and it can be expanded to 64 outputs by adding an expansion board. It can be configured and managed remotely via the Akuvox cloud platform, making it easy for administrators to maintain the system and keep it up to date.  The EC33 works well with Akuvox intercoms and access control terminals. It can be typically used in multifamily and office buildings to enhance building access security.

Akuvox EC33 - Key Features:
  • IP-based elevator access controller
  • Works with all Akuvox intercoms and access control terminals
  • 32 outputs
  • Fire alarm input for emergency door release or daily elevator command
  • 20,000 card capacity & 100,000 Event Log
  • TCP/IP communication
  • Remote Management
  • Enhanced security when linked with access control terminals
Akuvox EC33 – Product Specification:
  • Manufacturer: Akuvox
  • Model: EC33
  • Wiegand: Support
Akuvox EC33 Technical Specifications:

At a Glance

  • 10/100M Ethernet
  • 20,000 card capacity & 100,000 Logs capacity
  • EC33 supports 32 outputs an can connect to an expansion controller to expand to 64 outputs
  • RS485 port to connect to a expansion controller;
  • Fire Alarm input to support emergency door release or normal lift commands
  • Works with other Akuvox devices by using HTTP commands
  • Akuvox Cloud supported

Physical & Power

  • Communication: TCP/IP
  • RS485: Support
  • RJ45 port: 1
  • Wiegand: Wiegand 26/34
  • Relay Out: 32
  • Fire alarm input: 1
  • Power supply: 100~240VAC Input or PoE
  • PoE:IEEE802.3af PoE
  • Rated power: ≤10W
  • Dimension: 320 x 270 x 75 (mm)
  • Working Humidity: 10~90%
  • Working Temperature: <45
