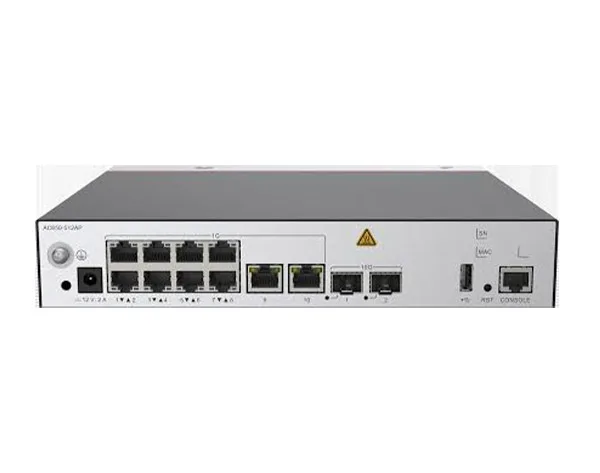

Huawei eKitEngine AC650-512AP Wireless Access Controller
High-Capacity Wireless AC with Integrated Switching, Supports 512 APs, 2 x 10GE SFP Ports, 10GE for SMB and Campus Networks
Huawei eKitEngine AC650-512AP is a powerful wireless access controller designed for small and medium-sized enterprises. It supports up to 512 managed APs and integrates a GE switching function for seamless wired and wireless connectivity. With 2 x 10GE SFP uplinks and 10 x GE ports, it provides 10 Gbit/s forwarding performance for demanding enterprise environments. Advanced features include SmartRadio for interference optimization, built-in Portal and AAA servers for secure authentication, application-level traffic management, and multiple high-availability options like 1+1 HSB and N+1 backup. Its web-based management platform simplifies monitoring and configuration, making it ideal for SMB, campus, and hotspot deployments.
Key Features:
- Supports up to 512 APs and 4096 users for high-density deployments
- 10 Gbps forwarding with 2 x 10GE SFP uplinks and 10 x GE ports
- Integrated GE switching for wired and wireless convergence
- SmartRadio optimization for improved channel efficiency
- Built-in Portal and AAA servers with 802.1X authentication support
- Advanced security features including WPA3, WAPI, ACLs, and rogue AP detection
- Application identification for over 6000 apps with traffic control policies
- High availability with 1+1 HSB, N+1 backup, and configuration synchronization
- Comprehensive QoS, VLAN, and multicast support for enterprise environments
- Supports both cloud and on-premises management via Huawei eKit App
Product Specifications:
- Manufacturer: Huawei
- Model: AC650-512AP
- Max Managed APs: 512
- Max Access Users: 4096
- Forwarding Capacity: 10 Gbps
- Interfaces: 2 x 10GE SFP+, 10 x GE
- Switching Features: VLAN (4096), link aggregation, MSTP, STP, RSTP
- Routing: IPv4/IPv6 static and dynamic (RIP, OSPF, BGP)
- MAC Address Table: 8192 entries
- Dimensions (H x W x D): 43.6 mm × 250 mm × 210 mm
- Weight: 1.47 kg
- Power Supply: AC/DC adapter
- Max Power Consumption: 21 W
- Operating Temperature: 0°C to 45°C
- Humidity: 5%–95% RH non-condensing
- Wireless Features: CAPWAP, DTLS encryption, mesh networking, smart roaming (802.11k/v/r)
- Security: WPA/WPA2/WPA3, AAA, RADIUS, MAC/IP binding, WIDS/WIPS
- QoS: WMM, PQ/DRR scheduling, congestion control
- Standards Compliance: IEC, UL, CSA, EN, FCC, ETSI, RoHS, WEEE
