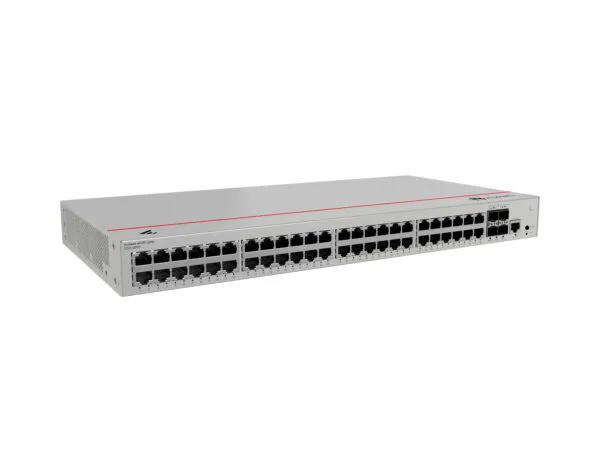

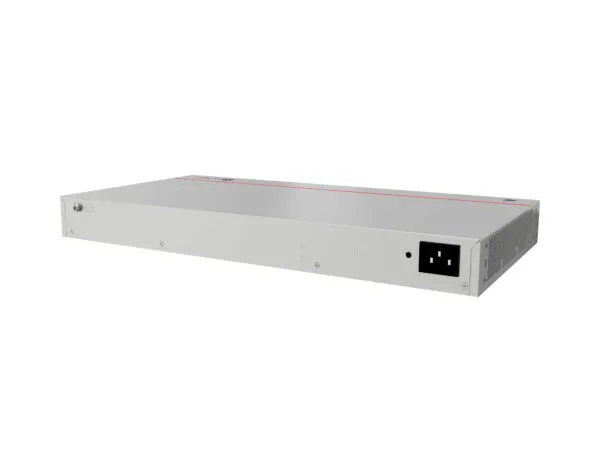

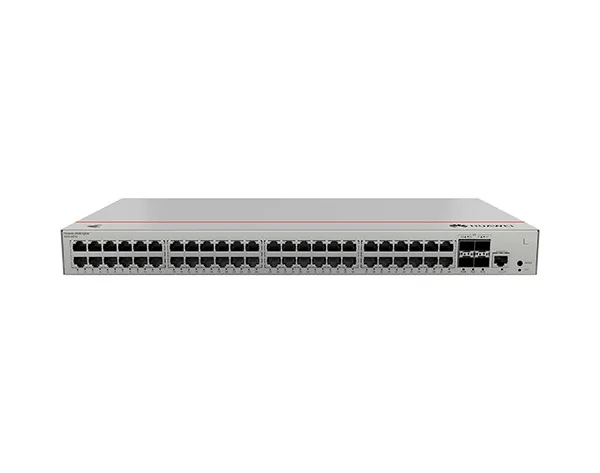

Huawei eKitEngine S220-48P4S Switch
Layer 2 Managed Switch with 48 GE PoE+ Ports and 4 GE SFP Uplink Ports
Huawei eKitEngine S220-48P4S is a Layer 2 managed switch designed for SOHO and SMB networks. It provides 48×10/100/1000BASE-T downlink ports with PoE+ support and 4 GE SFP uplink ports. The device offers a switching capacity of 104 Gbps and a packet forwarding rate of 77 Mpps. It supports advanced Ethernet features including STP, RSTP, MSTP, and ERPS for network reliability. Security features include MAC and 802.1X authentication, DoS attack prevention, and DHCP snooping. PoE functionality includes Fast PoE for quick power delivery and Perpetual PoE to ensure uninterrupted power during reboots, with a total power budget of 380 W. Flexible management options are available via Huawei eKit App, web interface, CLI, SNMP, or SSH, with additional support for smart upgrade through Huawei Online Upgrade Platform (HOUP).
Key Features:
- 48 GE PoE+ ports and 4 GE SFP uplinks
- 104 Gbps switching capacity and 77 Mpps forwarding
- PoE+ power budget of 380 W with Fast PoE and Perpetual PoE
- Supports STP, RSTP, MSTP, and ERPS
- Advanced security with MAC and 802.1X authentication
- Protection against DoS and DHCP attacks
- Flexible cloud or on-premise management (eKit App, web, SNMP, SSH)
- Energy Efficient Ethernet (IEEE 802.3az)
- Smart upgrade with one-click update through HOUP
Product Specifications:
- Manufacturer: Huawei
- Model: eKitEngine S220-48P4S
- Ports: 48×10/100/1000BASE-T (PoE+), 4×GE SFP
- Switching Capacity: 104 Gbps
- Packet Forwarding: 77 Mpps
- Dimensions: 43.6 mm × 442 mm × 220 mm
- Height: 1U
- Weight: 4.29 kg
- Power Module: Built-in AC
- Rated Voltage: 100 V AC to 240 V AC, 50/60 Hz
- Max Voltage: 90 V AC to 290 V AC, 45 Hz to 65 Hz
- Max Power Consumption: 462.8 W (PoE: 380 W)
- Noise: 49.3 dB(A) normal, 63 dB(A) high temperature
- Operating Temperature: -5 °C to +50 °C
- Storage Temperature: -40 °C to +70 °C
- Relative Humidity: 5% to 95% non-condensing
- Service Port Surge Protection: ±7 kV
- Power Port Surge Protection: Differential mode ±6 kV, Common mode ±6 kV
- Cooling: Air cooling with intelligent fan speed adjustment
