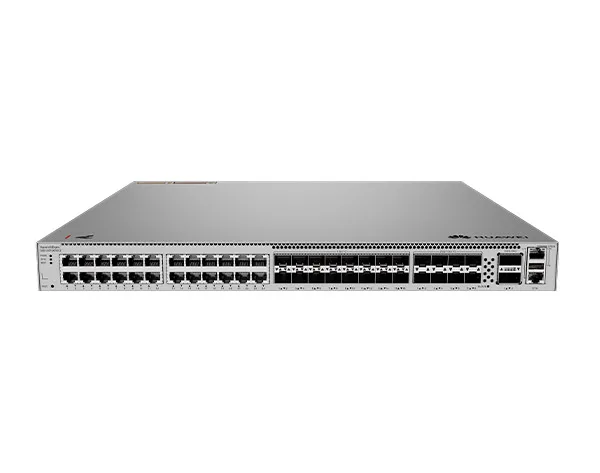

Huawei eKitEngine S620-24T16X8Y2CZ Switch
Next-generation 10GE core switch with cloud management, intelligent stacking, high switching capacity, and advanced security features
Huawei eKitEngine S620-24T16X8Y2CZ is an enhanced, fully-managed 10GE core switch designed for small and medium-sized businesses. It provides a variety of ports including 24 x GE, 16 x 10GE SFP+, 8 x 25GE SFP28, and 2 x 40GE/100GE QSFP28 interfaces for flexible and high-bandwidth network deployment. The switch features a high-performance processor with flexible packet handling, advanced QoS capabilities, and extensive service processing capacity. Supporting intelligent stack (iStack), cloud and on-premises management, and millisecond-level Ethernet Ring Protection Switching (ERPS), it delivers high reliability and scalability. With support for comprehensive Layer 2 and Layer 3 protocols, rich security options, and energy-efficient intelligent cooling, the S620-24T16X8Y2CZ is ideal as a core or aggregation switch for medium and large enterprise networks.
Key Features:
- Fully managed 10GE core switch for SMB and enterprise networks
- High-speed processor enabling flexible packet processing and traffic control
- 24 GE, 16 10GE SFP+, 8 25GE SFP28, and 2 40GE/100GE QSFP28 ports for scalable deployment
- Unified user management with 802.1X, MAC authentication, and group-based authorization
- Advanced QoS with multi-level queue scheduling and congestion control
- Supports STP, RSTP, MSTP, and G.8032 ERPS for reliable Ethernet ring protection
- iStack technology for simplified configuration, redundancy, and high scalability
- Smart upgrade via Huawei Online Upgrade Repository (HOUP) with one-click automation
- Supports both cloud and on-premises management through HUAWEI eKit App
- Comprehensive Layer 2/3 routing with IPv4, IPv6, OSPF, IS-IS, BGP, and multicast protocols
- Network reliability enhanced with VRRP, BFD, and Ethernet OAM support
- Advanced security including NAC, RADIUS, HWTACACS, and MACsec encryption
- Air-cooled system with intelligent fan speed adjustment for energy efficiency
- Compact 1U chassis with flexible AC/DC power module options
Product Specifications:
- Manufacturer: Huawei
- Model: eKitEngine S620-24T16X8Y2CZ
- Fixed Ports: 24 x 10/100/1000M BASE-T, 16 x 10GE SFP+, 8 x 25GE SFP28, 2 x 40GE/100GE QSFP28
- Switching Capacity: 1168 Gbps
- Packet Forwarding Rate: 867 Mpps
- Expansion Slot: One slot reserved for expansion card
- Dimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm
- Chassis Height: 1U
- Weight: 6.31 kg
- Power Supply Type: 180 W AC, 240 W DC, 400 W DC, or 600 W AC power modules
- Rated Input Voltage: 100–130 V AC, 200–240 V AC, 50/60 Hz
- High-Voltage DC Input: 240 V DC
- DC Input: –48 V DC to –60 V DC
- Input Voltage Range: 90–290 V AC, 45–65 Hz / 190–290 V DC / –38.4 to –72 V DC
- Typical Power Consumption: 122 W
- Maximum Power Consumption: 127 W
- Noise Level: 41.2 dBA
- Operating Temperature: –5°C to +45°C
- Storage Temperature: –40°C to +70°C
- Relative Humidity: 5% to 95% non-condensing
- Power Port Surge Protection: ±6 kV AC differential/common mode, ±2 kV DC differential, ±4 kV DC common
- Cooling: Air cooling with intelligent fan speed adjustment
