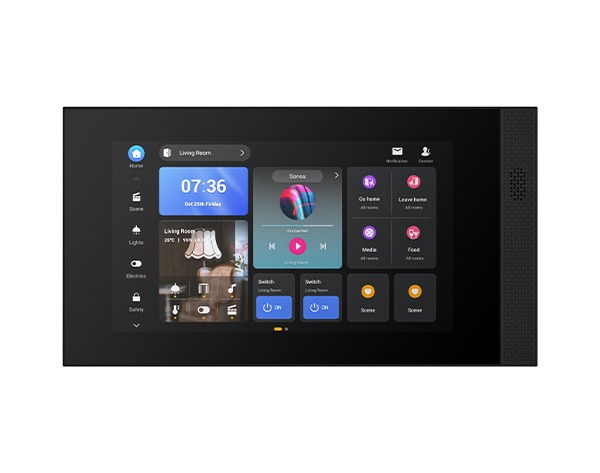

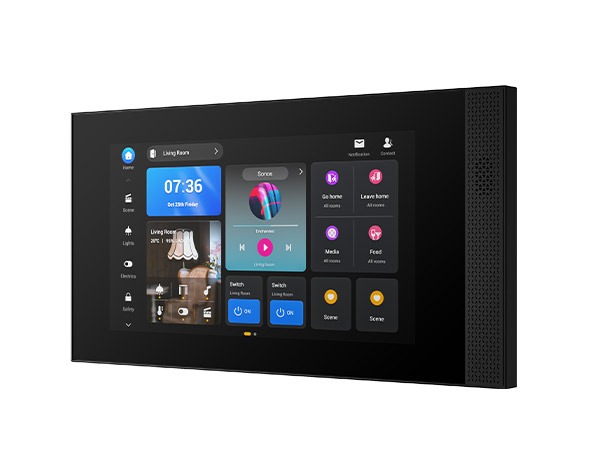

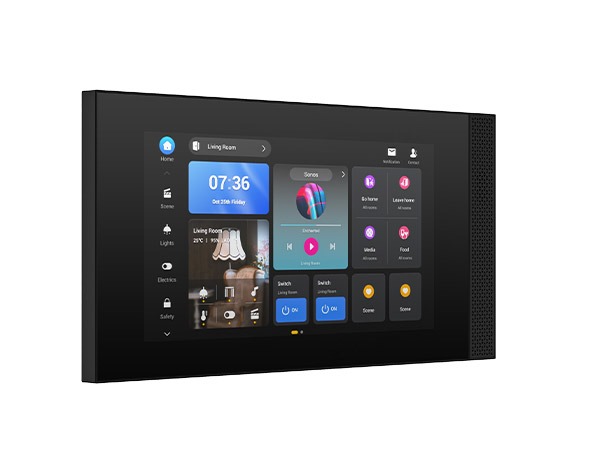

Akubela HyPanel Elite 7 PG42 smart home control panel combines a 7-inch touch screen, ZigBee gateway, infrared appliance control, and SIP-based smart intercom functionality within a compact Linux-powered platform. Designed for modern homes, it delivers centralized automation and flexible smart device management.

الوصف

Akubela HyPanel Elite 7 PG42 is a premium smart home control panel designed to provide centralized automation, smart intercom communication, and intelligent home management in a compact and elegant form factor. Powered by a Linux operating system, this advanced control panel integrates ZigBee gateway functionality, infrared remote control, and SIP-based audio and video communication into a seamless smart home solution. Its slim and modern design with a 7-inch touch screen makes it ideal for residential smart home environments.
The Akubela HyPanel Elite 7 PG42 supports smart home device management through ZigBee 3.0 connectivity and infrared appliance control for enhanced automation flexibility. Equipped with dual Ethernet ports, RS485 support, relay output, and digital input channels, the panel provides extensive integration capabilities for modern smart ecosystems. With energy-saving screen modes, PoE support, two-way audio communication, and compatibility with EU, UK, and US wall mounting standards, the HyPanel Elite 7 delivers efficient and reliable smart home control for everyday use.

Akubela HyPanel Elite 7 PG42 Smart Home Control Panel Key Product Specifications:

  • Manufacturer: Akubela
  • Model: PG42
  • Product Category: Smart Home Control Panel
  • Operating System: Linux
  • Display Size: 7 Inch
  • Screen Type: Touch Screen
  • Screen Resolution: 1024 × 600 Pixels
  • Screen Brightness: 300 cd/㎡
  • Material: V0 Fireproof PC
  • Memory: 128MB DDR
  • Storage: 256MB Flash
  • Wi-Fi Standard: IEEE 802.11 b/g/n/ax 2.4GHz
  • Ethernet Ports: 2 × RJ45 10/100Mbps
  • ZigBee Standard: ZigBee 3.0
  • ZigBee Sub-Device Capacity: 32 Devices
  • RS485 Port: Supported
  • Relay Output: 1 Gang
  • Bell Input Port: 1 Channel
  • Digital Inputs: 8 Channels
  • Microphone: Single Microphone -42dBV
  • Speaker: Single Speaker 4Ω / 2W
  • IR Control Coverage: 90° Horizontal / 90° Vertical / 6m
  • Power Supply: IEEE802.3af PoE & 12VDC
  • IP Rating: IP20
  • Installation Type: Wall-Mounted & Desktop

Akubela HyPanel Elite 7 PG42 Smart Home Control Panel Key Product Features:

  • 7-inch touch screen with energy-saving mode
  • Linux operating system for smart home management
  • Integrated ZigBee 3.0 gateway functionality
  • Infrared remote control for home appliances
  • Smart intercom with SIP 2.0 communication support
  • Dual Ethernet ports with PoE support
  • Supports RS485 integration
  • Two-way audio communication across network devices
  • Wall-mounted and desktop installation flexibility
  • Compatible with EU, UK, and US wall box standards

معلومات إضافية

Operating System

Linux

Display Size

7 Inch

Screen Resolution

1024 × 600 Pixels

Screen Brightness

300 cd/㎡

Memory

128MB DDR

Storage

256MB Flash

Wi-Fi Standard

IEEE 802.11 b/g/n/ax 2.4GHz

Ethernet Ports

2 × RJ45 10/100Mbps

ZigBee Standard

ZigBee 3.0

Relay Output

1 Gang

Digital Inputs

8 Channels
