Akubela KXAC-B1DD2 DALI Dimming Module delivers intelligent KNX-based lighting control with dual DALI channels supporting up to 64 devices per channel. It supports DT6 and DT8 lighting devices, scene management, group control, and DIN rail installation, making it ideal for advanced residential and commercial smart lighting systems.

الوصف

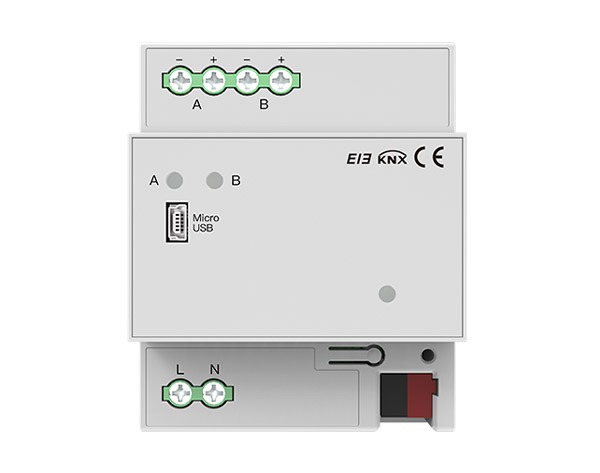

Akubela KXAC-B1DD2 is a professional dual channel DALI dimming module designed for intelligent KNX lighting control systems in residential and commercial environments. The module integrates DALI lighting devices into KNX building installations, supporting flexible control methods including broadcast, individual light control, groups, and scene management. With support for DALI DT6 and DT8 devices in mixed configurations, the Akubela KXAC-B1DD2 enables advanced lighting management for tunable white, RGB, and coordinate-based lighting applications. Its DIN rail installation design, wide voltage range support, and reliable KNX communication make it an ideal solution for modern smart building lighting automation systems.

Akubela KXAC-B1DD2 DALI Dimming Module Key Product Specifications:

  • Manufacturer: Akubela
  • Model: KXAC-B1DD2
  • Product Category: DALI Dimming Module
  • DALI Channels: 2
  • Connection Method: EIB/KNX
  • KNX Bus Voltage: 21 ~ 30VDC
  • Gateway Power Supply Voltage: 100 ~ 240VAC, 50/60Hz
  • Maximum Supply Current: 2 × 250mA
  • DALI Voltage: Typical Value 16VDC
  • Mains Power Consumption Total Current: <48mA
  • Mains Power Consumption Total Power: <11W
  • Current Consumed Through Bus: <10mA
  • Power Consumed Through Bus: <210mW
  • Working Temperature: -5 ~ 45℃
  • Storage Temperature: -25 ~ 55℃
  • Transport Temperature: -25 ~ 70℃
  • Working Humidity: 0 ~ 93%RH
  • Installation: 35mm DIN Rail Installation
  • Product Size: 72 × 90 × 64mm
  • Weight: 0.2kg

Akubela KXAC-B1DD2 DALI Dimming Module Key Product Features:

  • Dual channel DALI gateway for KNX lighting integration
  • Supports broadcast, individual, group, and scene lighting control
  • Each DALI channel supports up to 64 DALI devices
  • Compatible with DALI DT6 and DT8 devices in mixed configurations
  • Supports DT8 TC, XY coordinates, and RGB device types
  • Utilizes standard EIB/KNX communication protocol
  • Wide voltage range power supply support
  • DIN rail installation design for easy deployment
  • Reliable lighting automation for smart building applications
  • Suitable for residential and commercial KNX systems

معلومات إضافية

DALI Channels

2

Connection Method

EIB/KNX

KNX Bus Voltage

21 ~ 30VDC

Power Supply Voltage

100 ~ 240VAC, 50/60Hz

Maximum Supply Current

2 × 250mA

DALI Voltage

Typical Value 16VDC
