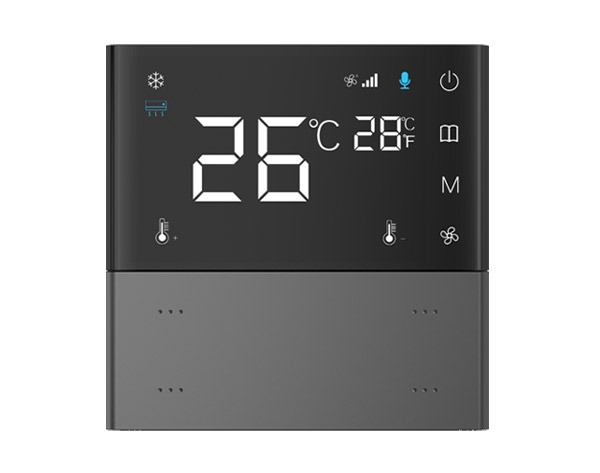

Akubela KXTC-B1B4-EU is an advanced KNX temperature control panel designed to provide intelligent climate management for modern residential and commercial environments. It supports multiple control modes for air conditioning, ventilation, and underfloor heating, allowing users to manage indoor comfort with flexibility and precision. The built-in LCD display provides real-time environmental data, including temperature and humidity, while the customizable interface enables tailored control experiences for different applications. With support for scene recall, dimming, blinds control, and multi-functional button operations, the Akubela KXTC-B1B4-EU temperature control panel delivers convenient automation and seamless integration into KNX smart building systems.
Akubela KXTC-B1B4-EU Temperature Control Panel Key Product Specifications:
- Manufacturer: Akubela
- Model: KXTC-B1B4-EU
- Product Category: Temperature Control Panel
- Connection Method: EIB/KNX
- Button Quantity: 4-Button Interface
- Bus Voltage: 21 ~ 30V DC
- Bus Current: <12mA
- Bus Consumption: <360mW
- Auxiliary Voltage: 21 ~ 30V DC
- Auxiliary Consumption: <1W
- Temperature Setting Range: 16 ~ 30°C
- Temperature Display Accuracy: ±0.1°C
- Humidity Display Range: 0 ~ 100%
- Protection Level: IP20
- Working Temperature: -5 ~ 45°C
- Working Humidity: 0 ~ 93%RH Non-Condensing
- Installation: Standard 60mm Installation Box
- Dimensions: 86 × 86 × 38.2mm
- Weight: 0.13kg
Akubela KXTC-B1B4-EU Temperature Control Panel Key Product Features:
- Multi-mode control for air conditioning, ventilation, and underfloor heating
- LCD display with real-time environmental data monitoring
- Customizable temperature control display content
- Supports switch, dimming, color tuning, and blinds control with actuator
- Scene recall and storage functionality
- Delayed transmission of values
- Multi-functional button operation
- High temperature display accuracy of ±0.1°C
- KNX and EIB compatible connectivity
- Compact design for standard 60mm installation boxes
