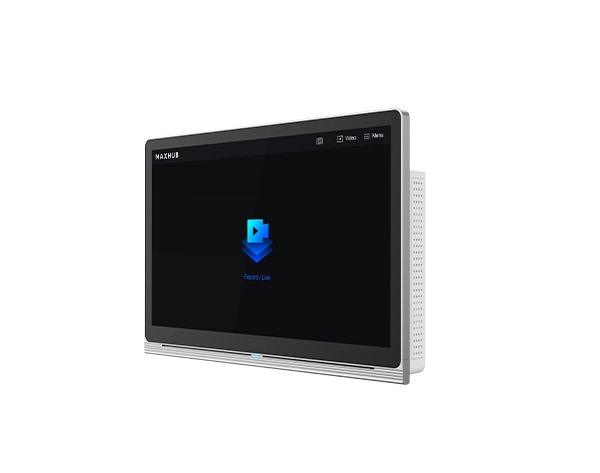

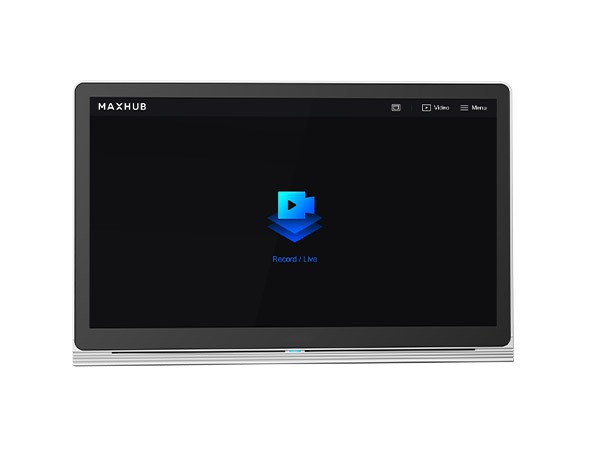

MAXHUB CSP30 is a high-integration recording and live streaming solution designed for modern educational and professional environments. Combining localized capture, intelligent broadcasting, and online live streaming capabilities, the CSP30 supports simultaneous recording from up to 7 different channels including teacher views, student views, courseware, and board content. Equipped with a 15.6-inch full-laminated capacitive touchscreen, Linux operating system, 8-core processor, and 1TB storage, the system delivers efficient control, smooth operation, and reliable 4K recording performance. With customizable broadcasting layouts, intelligent human recognition, and compatibility with mainstream conferencing and streaming platforms, the MAXHUB CSP30 provides a complete and flexible capture solution for interactive learning and collaboration spaces.
MAXHUB CSP30 Capture System Key Product Specifications:
- Manufacturer: MAXHUB
- Model: CSP30
- Product Category: Capture System
- Display Size: 15.6 Inch
- Display Resolution: 1920 × 1080
- Brightness: 250 nits
- Backlight Unit: ELED
- Color Gamut: 72% NTSC
- Viewing Angle: More Than 170°
- Refresh Rate: 60 Hz
- Screen Type: Capacitive Touchscreen
- Touch Points: 10 Points
- Glass Type: 7H Tempered Glass
- Bluetooth Version: 5.2
- Operating System: Linux
- CPU: A76 ×4 + A55 ×4
- GPU: Mali-G610 MP4
- NPU: 6 TOPs
- RAM: 8GB
- Storage: 1TB SATA
- Video Recording Resolution: 4K at 30fps, 1080p, 720p, VGA, QVGA
- Video Recording Frame Rate: 60 fps, 30 fps, 25 fps
- Video Recording Format: MP4
- Multi-Channel Recording: Up to 7 Channels
- Live Streaming Channels: Up to 3 RTMP Channels
- Live Streaming Resolution: 1080p, 720p, VGA, QVGA
- HDMI Output: ×3
- HDMI Input: ×2
- USB-A 2.0: ×1
- USB-A 3.0: ×2
- USB Type-C: ×2
- RJ45 Ports: ×5
- Power Consumption: 60W Maximum
- Dimension with Stand: 374.6 × 193.7 × 239.5 mm
- Net Weight: 3.0 kg
- MTBF: ≥ 250000 Hours
MAXHUB CSP30 Capture System Key Product Features:
- Supports simultaneous 7-channel video capture
- Integrated live streaming and local recording solution
- 15.6-inch capacitive touchscreen with 10-point touch
- 4K video recording and streaming support
- Customizable broadcasting layouts and intelligent control
- Compatible with mainstream conferencing and streaming platforms
- 8-core processing architecture for smooth performance
- Supports up to 3 RTMP live streaming channels
- Comprehensive connectivity with HDMI, USB, and RJ45 ports
- Designed for educational and professional capture environments
